WL-YER-230P 30W US NEW

   FEATURES

  • Voltage: AC110-130V
  • Wall mounted
  • Adjustable heads
  • Manual override function
  • With PIR sensor
  • ETL FCC
  • 2 years warranty
Contact now Download

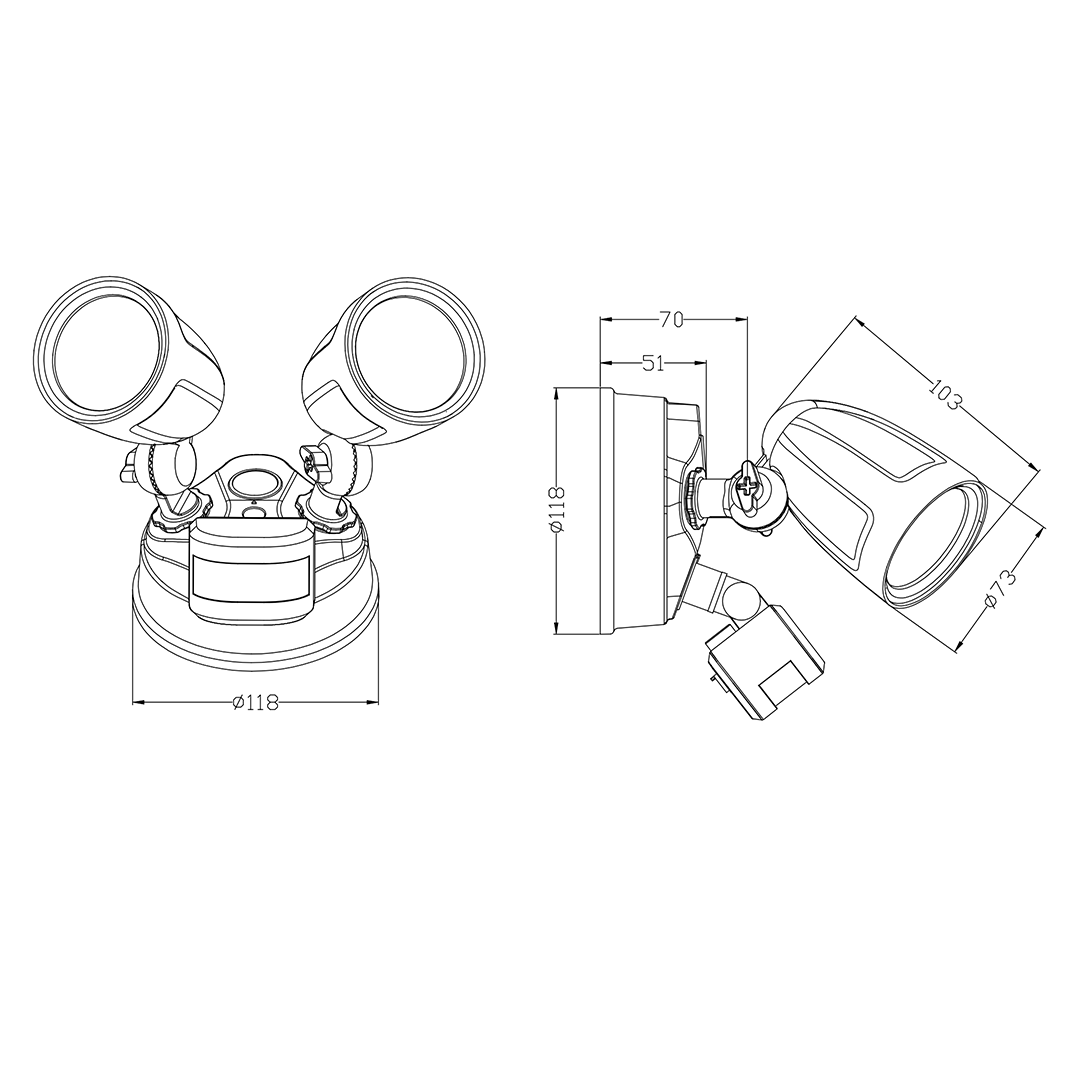

  • image_led_securitylight_yer-230p-30w-us_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF PIR Sensor Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YER-230P-NEW
 30W
 SMD2835 No
 110-130V~60Hz
 3000/4000/6500K
 2700lm
 >80Ra
 100°/head
 >0.9
 Available
 150°
 5-2000Lux
 12m max
 10secs-10mins
WL-YER-230P
 30W
 SMD2835 No
 110-130V~60Hz
 3000/4000/6500K
 2400lm
 >80Ra
 90°/head
 >0.9
 Available
 120°
 5-2000Lux
 10m max
 3secs-8mins
WL-YER-230P-D4
 30W
 SMD2835
 Yes
 110-130V~60Hz
 3000-6500K
 2400lm
 >80Ra
 90°/head
 >0.9
 Available
 120°
 5-2000Lux 10m max
 15s/30s/1m/2m
WL-YER-230P-D5
 30W
 SMD2835
 Yes
 110-130V~60Hz
 3000-6500K
 2400lm
 >80Ra
 90°/head
 >0.9
 Available
 120°
 5-2000Lux
 10m max
 3secs-8mins



CONSTRUCTION

Code Driver Body Material Color Weight IP Rating
WL-YER-230P-NEW
 Internal
 Plastic+Aluminum
 White/Black
 kg
 WET LOCATION USE
WL-YER-230P
 Internal
 Plastic+Aluminum
 White/Black
 kg
 WET LOCATION USE
WL-YER-230P-D4
 Internal
 Plastic+Aluminum
 White/Black
 kg
 WET LOCATION USE
WL-YER-230P-D5
 Internal
 Plastic+Aluminum
 White/Black
 kg
 WET LOCATION USE



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YER-230P-NEW
 1pc
 205*198*130mm
 kg
 16pcs
 42.5*42*54.5cm
 kg
 0.097m³
WL-YER-230P
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YER-230P-D4
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YER-230P-D5
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
