24W YDR-224 US 3CCT LED Security Light

WL-YDR-224 24W US

   FEATURES
  • Voltage: AC110-130V
  • Wall mounted
  • Adjustable heads
  • ETL FCC
  • 2 years warranty
Contact now Download

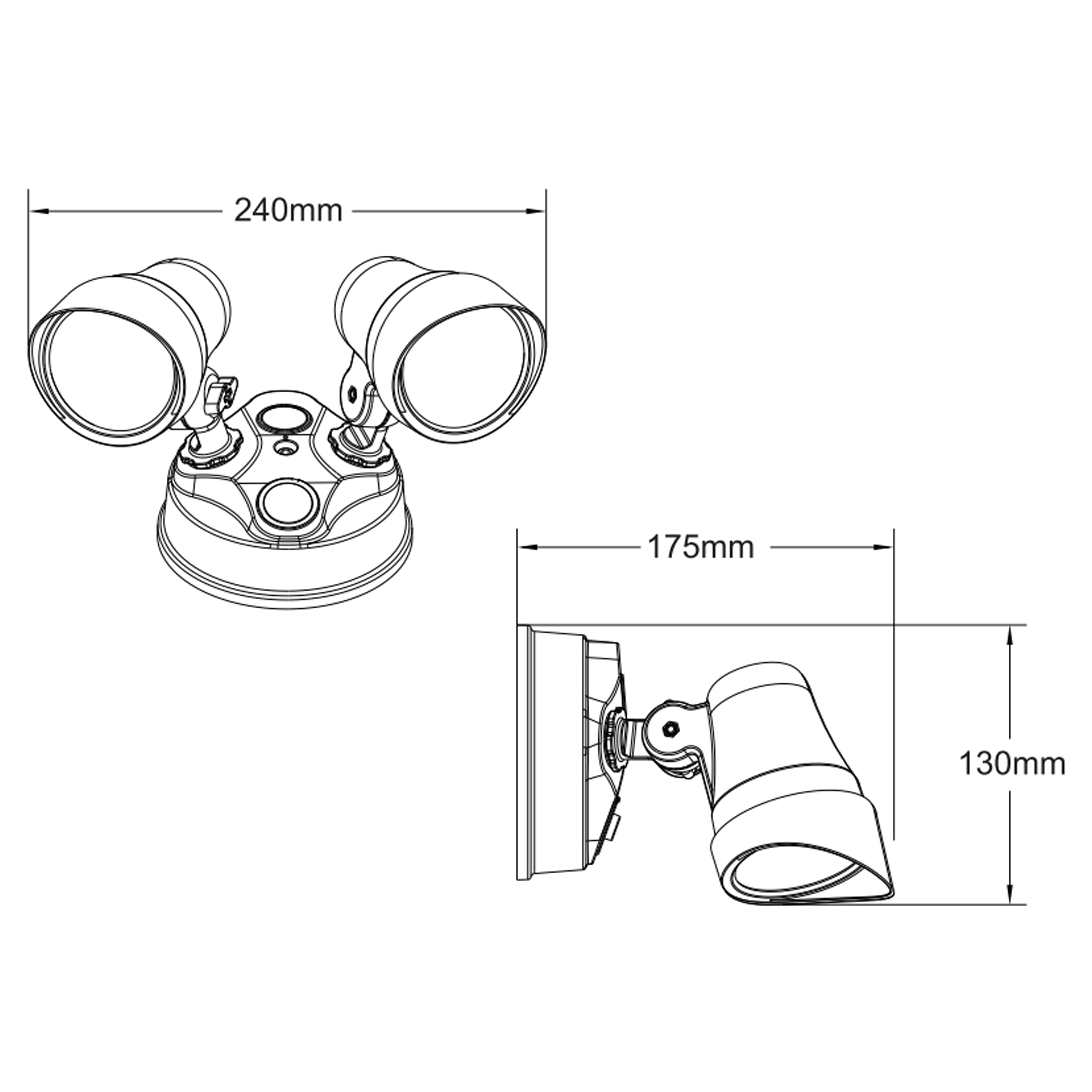

  • 24W YDR-224 US 3CCT LED Security Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF PIR Sensor Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YDR-224
 24W SMD2835
 No
 110-130V~60Hz
 3000/4000/6500K
 1750-1900lm(BK)/2000-2500lm(WH)
 >80Ra
 90°
 >0.9
 Non / / / /
WL-YDR-224P
 24W
 SMD2835 No
 110-130V~60Hz
 3000/4000/6500K
 1750-1900lm(BK)/2000-2500lm(WH)
 >80Ra
 90°
 >0.9
 Available
 140°
 5-2000Lux
 10m max
 3secs-8mins
WL-YDR-224P-D4
 24W
 SMD2835
 Yes
 110-130V~60Hz
 3000-6500K
 1750-1900lm(BK)/2000-2500lm(WH)
 >80Ra
 90°
 >0.9
 Available
 140°
 5-2000Lux 10m max
 15s/30s/1m/2m
WL-YDR-224P-D5
 24W
 SMD2835
 Yes
 110-130V~60Hz
 3000-6500K
 1750-1900lm(BK)/2000-2500lm(WH)
 >80Ra
 90°
 >0.9
 Available
 140°
 5-2000Lux
 10m max
 3secs-8mins



CONSTRUCTION

Code Driver Body Material Trim Color Weight IP Rating
WL-YDR-224
 Internal
 Plastic+Aluminum
 White/Black
 kg
 IP54
WL-YDR-224P
 Internal
 Plastic+Aluminum
 White/Black
 0.495kg
 IP54
WL-YDR-224P-D4
 Internal
 Plastic+Aluminum
 White/Black
 kg
 IP54
WL-YDR-224P-D5
 Internal
 Plastic+Aluminum
 White/Black
 kg
 IP54



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YDR-224
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YDR-224P
 1pc
 223*183 *130mm
 0.670kg
 12pcs
 46*41*39cm
 8.94kg
 0.074m³
WL-YDR-224P-D4
 1pc
 223*183 *130mm
 kg
 12pcs
 46*41*39cm
 kg
 0.074m³
WL-YDR-224P-D5
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
