12w YDR-112P 3CCT LED Wall Security Light

WL-YDR-112P 12W

   FEATURES
  • Wall mounted
  • Adjustable heads
  • Manual override function
  • With PIR sensor
  • RCM CE UKCA
  • 2 years warranty
Contact now Download

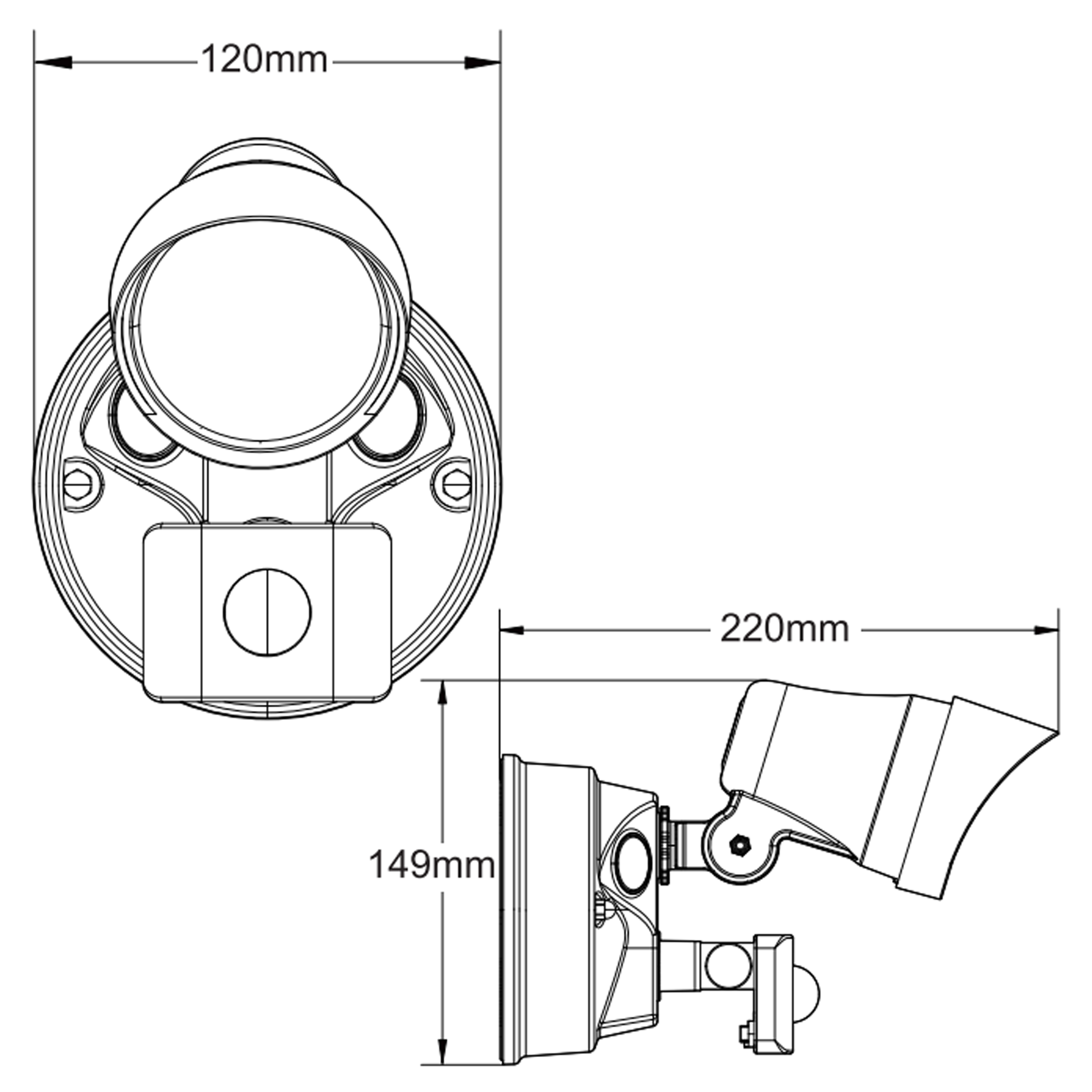

  • 12w YDR-112P 3CCT LED Wall Security Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF PIR Sensor Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YDR-112 12W SMD2835 No 220-240V~50/60Hz 3000/4000/6500K 850-950lm(BK)/1000-1200lm(WH) >80Ra 90° >0.9 Non / / / /
WL-YDR-112P
 12W SMD2835
 No
 220-240V~50/60Hz
 3000/4000/6500K
 850-950lm(BK)/1000-1200lm(WH)
 >80Ra
 90°
 >0.9
 Available
 140°
 5-2000Lux
 10m max
 3secs-8mins



CONSTRUCTION

Code Driver Body Material Trim Color Weight IP Rating
WL-YDR-112 Internal Plastic+Aluminum White/Black 0.340kg IP54
WL-YDR-112P
 Internal
 Plastic+Aluminum
 White/Black
 kg
 IP54



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YDR-112 1pc mm kg pcs cm kg m³
WL-YDR-112P
 1pc
 mm
 kg
 pcs
 cm
 kg
 m³
