20W YB2R-020 Twin LED Security Light With IP54 Rated

WL-YB2R-020 20W

   FEATURES
  • Wall or ceiling mounted
  • Fully adjustable head
  • RCM CE UKCA
  • 2 years warranty
Contact now Download

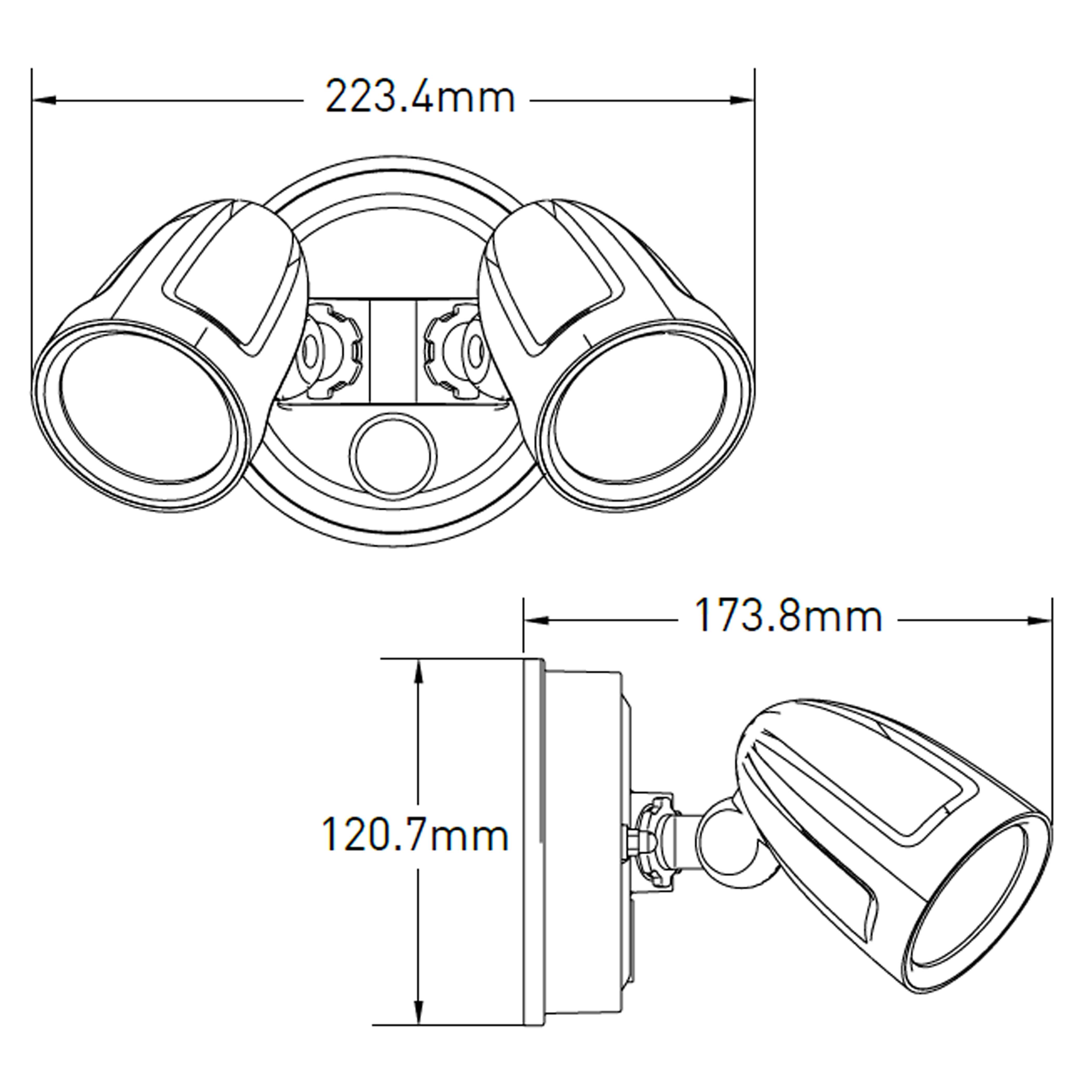

  • 20W YB2R-020 Twin LED Security Light With IP54 Rated_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT Lumen CRI Beam Angle PF PIR Sensor
 Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YB2R-010 10W SMD2835 No 220-240V~50/60Hz 3000 or 4000 or 6000K 700lm >80Ra 90° >0.5 Non
 / / / /
WL-YB2R-010P
 10W SMD2835
 No
 220-240V~50/60Hz
 3000 or 4000 or 6000K
 700lm
 >80Ra
 90°
 >0.5
 Available
 160°
 5-2000Lux
 12m max
 7secs-10mins
WL-YB2R-020
 20W SMD2835
 No
 220-240V~50/60Hz
 3000 or 4000 or 6000K
 1400lm
 >80Ra
 90°/head
 >0.5
 Non
 / / / /
WL-YB2R-020P
 20W
 SMD2835 No
 220-240V~50/60Hz
 3000 or 4000 or 6000K
 1400lm
 >80Ra
 90°/head
 >0.5
 Available
 160°
 5-2000Lux
 12m max
 7secs-10mins


CONSTRUCTION
Code Driver
 Body Material Trim Color Weight IP Rating
WL-YB2R-010 DOB
 Die-cast Al Head+PC Base White/Black kg IP54
WL-YB2R-010P
 DOB
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54
WL-YB2R-020
 DOB
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54
WL-YB2R-020P
 DOB
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YB2R-010 pc mm kg pcs cm kg m³
WL-YB2R-010P
 pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YB2R-020
 pc
 mm
 kg
 pcs
 cm
 kg
 m³
WL-YB2R-020P
 pc
 mm
 kg
 pcs
 cm
 kg
 m³
