30W YA2R-030P PIR Motion Sensor Twin LED Security Light

WL-YA2R-030P 30W

   FEATURES
  • Die-cast Aluminum heads
  • Manual override function
  • With PIR sensor
  • RCM CE UKCA IP54
  • 2 years warranty
Contact now Download

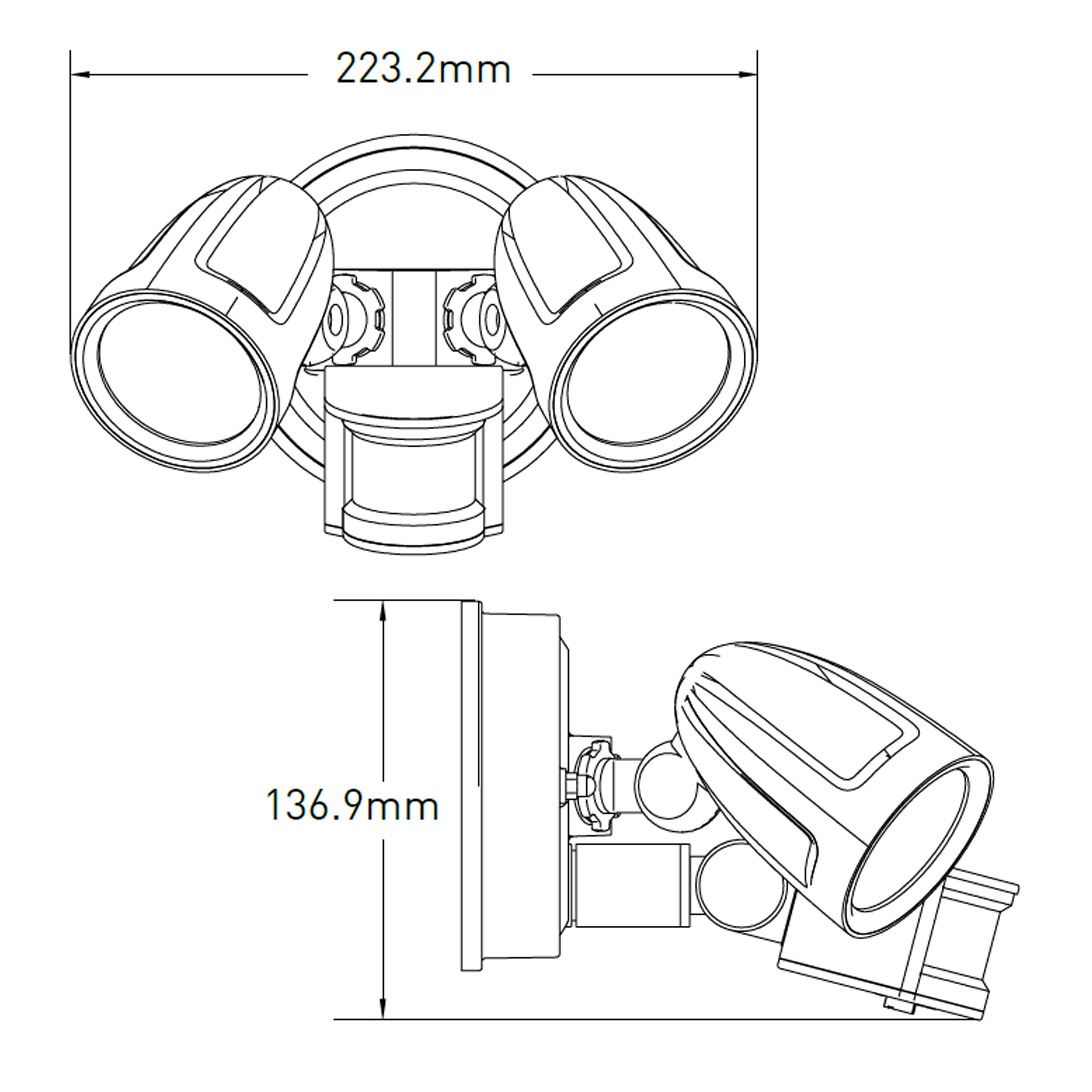

  • 30W YA2R-030P PIR Motion Sensor Twin LED Security Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT(option) Lumen CRI Beam Angle PF PIR Sensor
 Detection Angle
 Detection Brightness
 Detection Distance
 Detection Duration
WL-YA2R-015 15W COB No 220-240V~50/60Hz 3000K or 4000K or 6000K 1350lm >80Ra 90° >0.9 Non
 / / / /
WL-YA2R-015P
 15W COB
 No
 220-240V~50/60Hz
 3000K or 4000K or 6000K
 1350lm
 >80Ra
 90°
 >0.9
 Yes
 160°
 5-2000Lux
 12m max
 7secs-10mins
WL-YA2R-030
 30W COB
 No
 220-240V~50/60Hz
 3000K or 4000K or 6000K
 2700lm
 >80Ra
 90°/head
 >0.9
 Non
 / / / /
WL-YA2R-030P
 30W
 COB No
 220-240V~50/60Hz
 3000K or 4000K or 6000K
 2700lm
 >80Ra
 90°/head
 >0.9
 Yes
 160°
 5-2000Lux
 12m max
 7secs-10mins


CONSTRUCTION
Code Driver
 Body Material Trim Color Weight IP Rating
WL-YA2R-015 Internal
 Die-cast Al Head+PC Base White/Black kg IP54
WL-YA2R-015P
 Internal
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54
WL-YA2R-030
 Internal
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54
WL-YA2R-030P
 Internal
 Die-cast Al Head+PC Base
 White/Black
 kg
 IP54


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
WL-YA2R-015 1pc 145*120*160mm kg 20pcs 63*33.5*31.5cm kg 0.066m³
WL-YA2R-015P
 1pc
 145*120*195mm
 kg
 20pcs
 63*40.5*31.5cm
 kg
 0.080m³
WL-YA2R-030
 1pc
 205*198*152mm
 kg
 12pcs
 47.5*42.5*42cm
 kg
 0.085m³
WL-YA2R-030P
 1pc
 205*198*152mm
 kg
 12pcs
 47.5*42.5*42cm
 kg
 0.085m³
