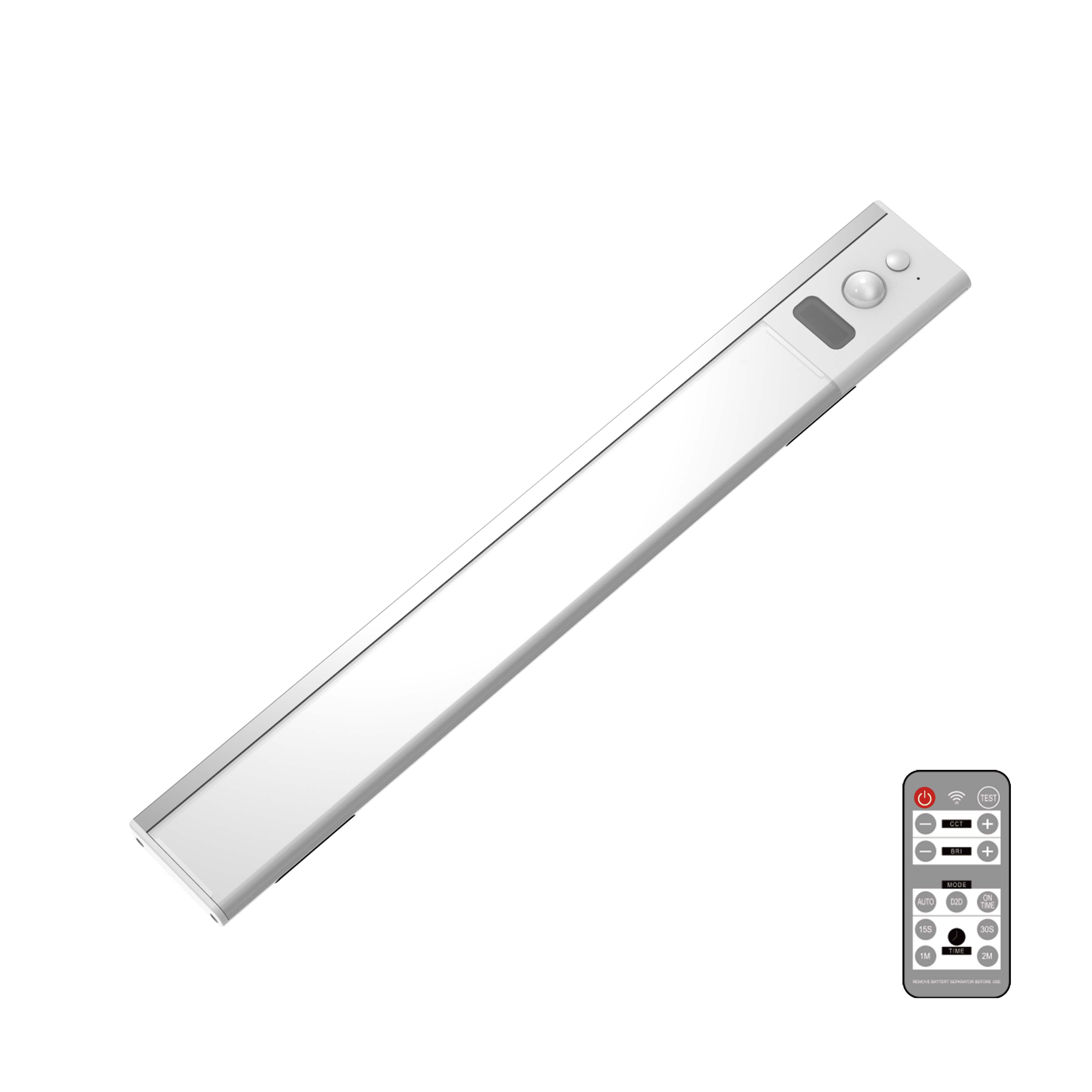

UB02 Series Wireless Side-Emitting Under Cabinet Bar Light

UB02 Series

   FEATURES

  • LED under cabinet light
  • Magnetic fixation
  • CCT +  Dimmable
  • Remote Control
  • FCC CE UKCA IP44
  • Type-C charged
Contact now Download

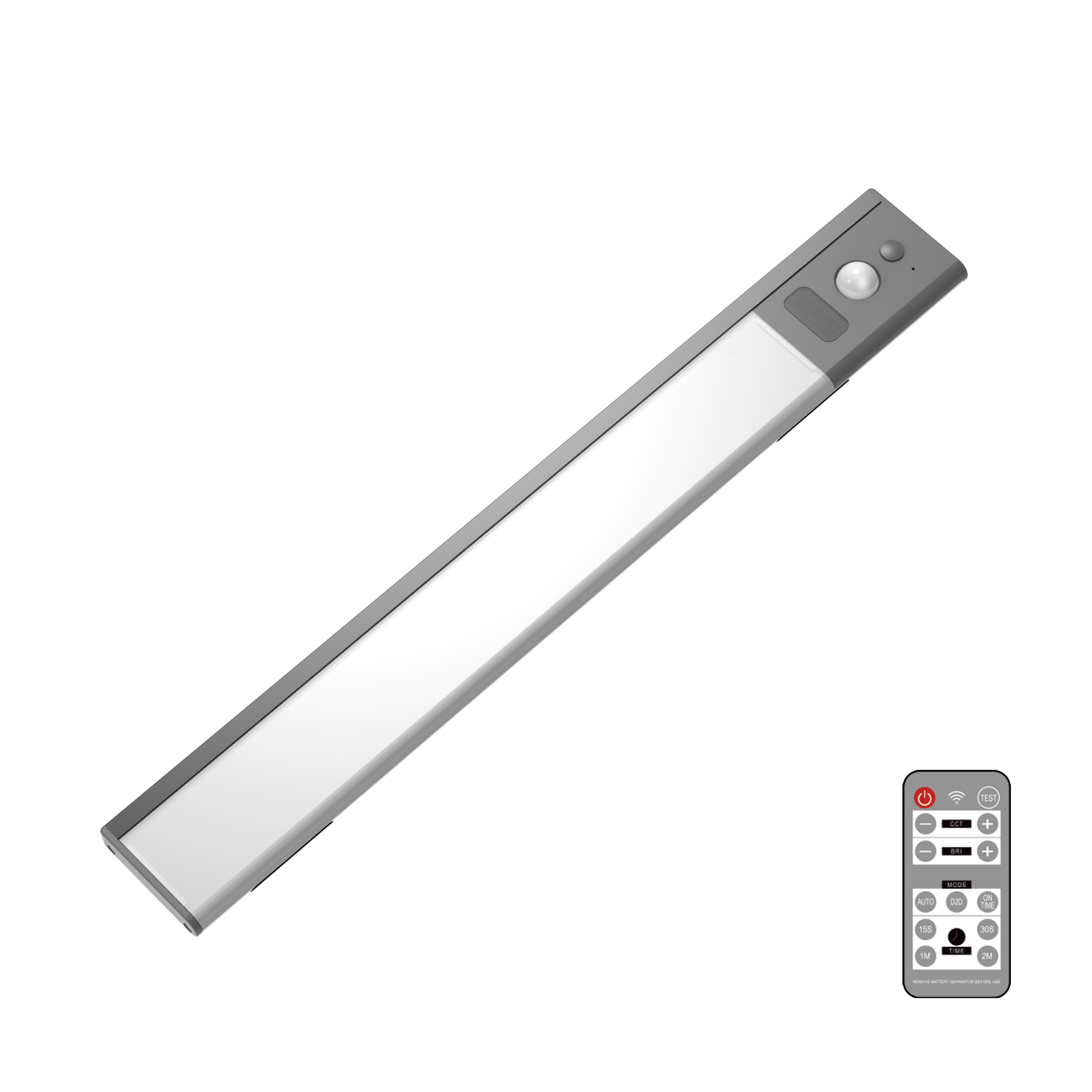

  • UB02 Series Wireless Side-Emitting Under Cabinet Bar Light_gun

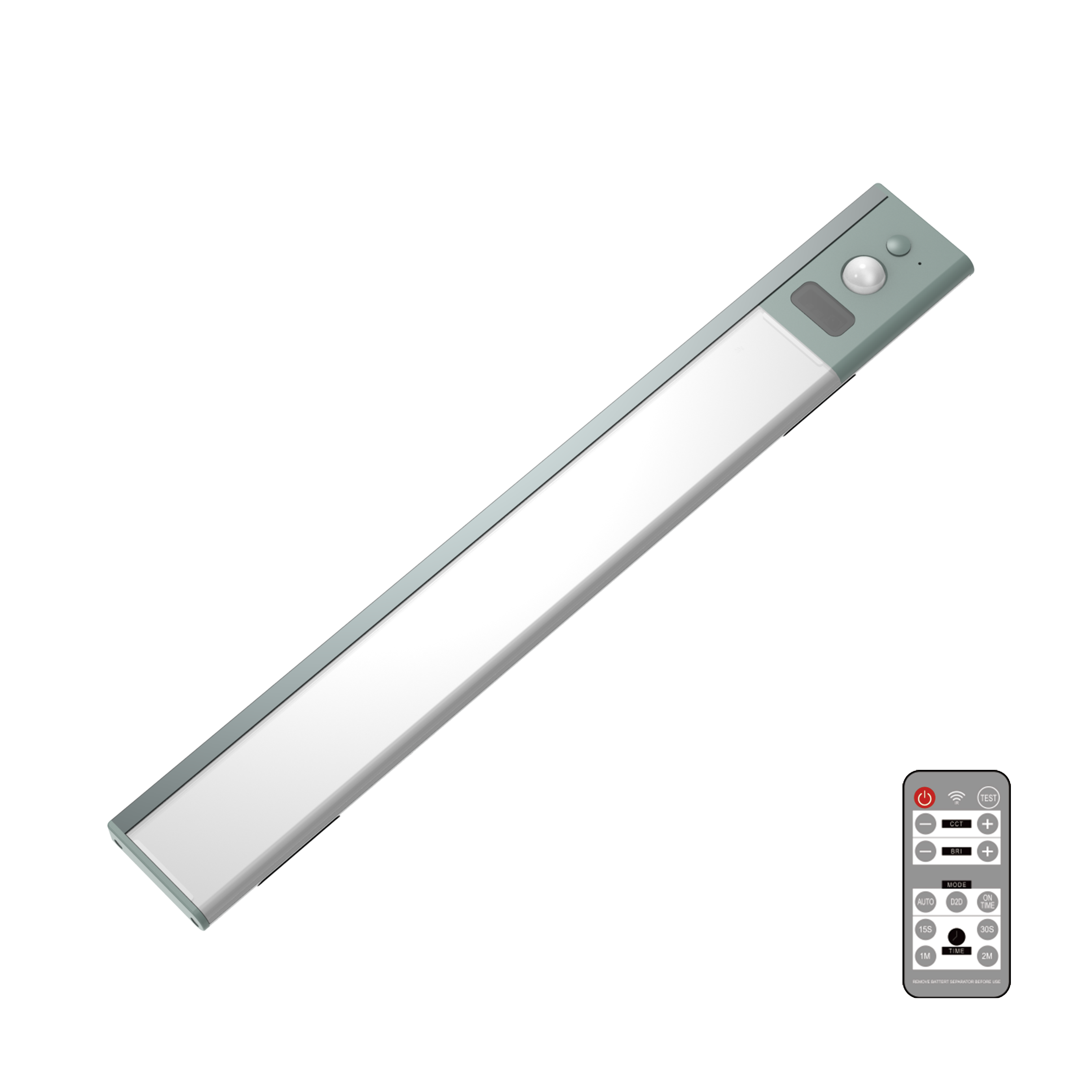

  • UB02 Series Wireless Side-Emitting Under Cabinet Bar Light_silver

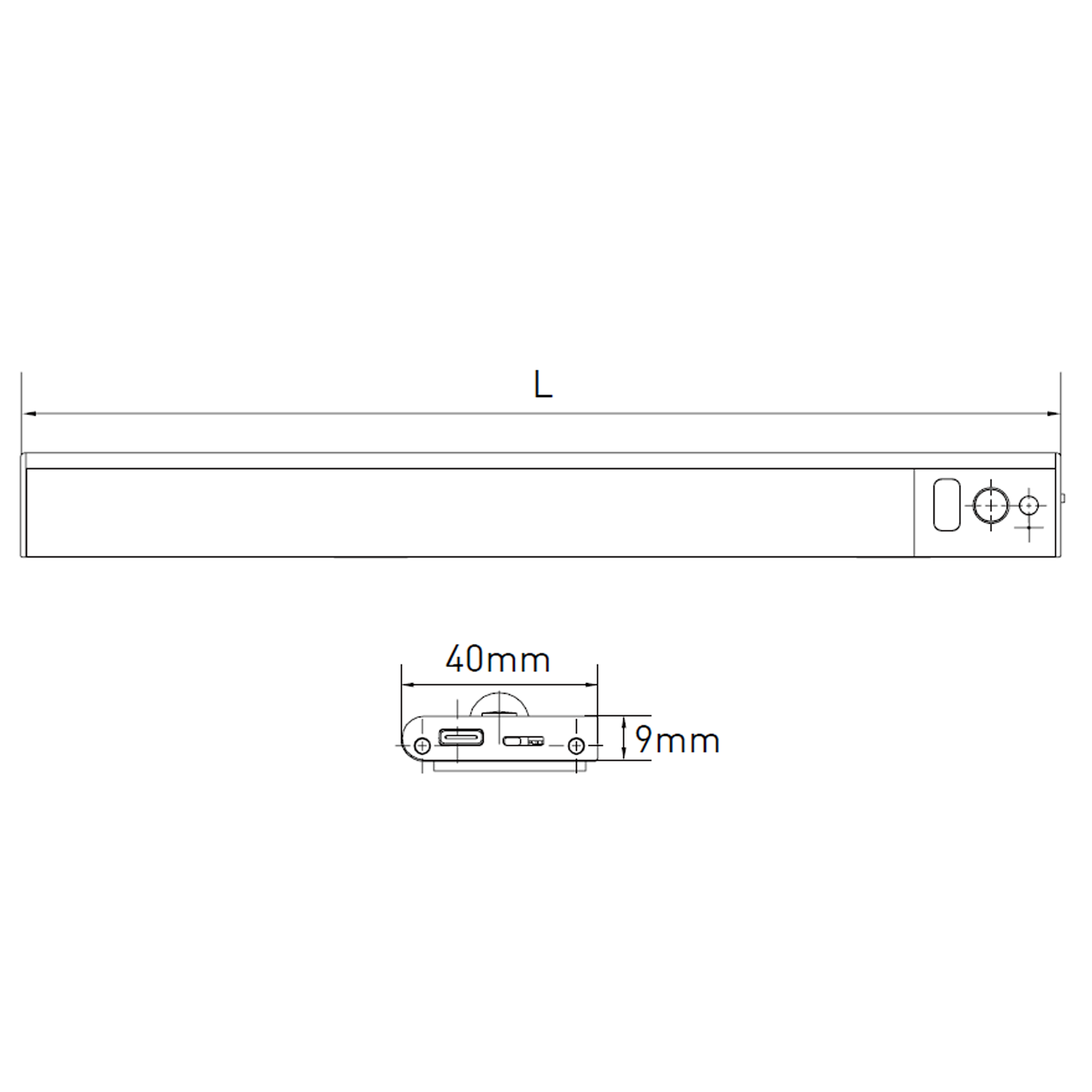

  • UB02 Series Wireless Side-Emitting Under Cabinet Bar Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Battery CCT Lumen CRI Working Mode Detection Angle
 Detection Duration
 Human Body Detection Distance
 Hnad Scan Detection Distance
 Charging Time
 Duration Time
UB02-30 1.5W SMD2835 Yes 3.7V 1500mAh
 3000-6000K 120lm >80Ra AUTO/NIGHT/HAND WAVE/ON TIME 120°
 30s/60s/120s
 0-4m
 <10cm 3h by USB(Type-C) 6h
UB02-40
 2W
 SMD2835
 Yes
 3.7V 2000mAh
 3000-6000K
 160lm
 >80Ra
 AUTO/NIGHT/HAND WAVE/ON TIME
 120°
 30s/60s/120s
 0-4m
 <10cm
 4h by USB(Type-C)
 6h
UB02-60
 3W
 SMD2835
 Yes
 3.7V 3000mAh
 3000-6000K
 240lm
 >80Ra
 AUTO/NIGHT/HAND WAVE/ON TIME
 120°
 30s/60s/120s
 0-4m
 <10cm
 5h by USB(Type-C)
 6h



CONSTRUCTION

Code Body Material Color Weight Lenth(L) IP Rating Mount
UB02-30 ABS+PC White/Black/Silver/Gun kg 30cm IP44 Magnetic
UB02-40
 ABS+PC
 White/Black/Silver/Gun
 kg
 40cm
 IP44
 Magnetic
UB02-60
 ABS+PC
 White/Black/Silver/Gun
 kg
 60cm
 IP44
 Magnetic



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
UB02-30 pc mm kg pcs cm kg m³
UB02-40
 pc
 mm kg pcs cm
 kg
 m³
UB02-60
 pc
 mm kg pcs
 cm
 kg
 m³
