DL-SV25S 0.5/1.5/2.5W

   FEATURES

  • 0.5/1.5/2.5W
  • Dimmable+3CCT
  • Slim with only 30mm height
  • CE UKCA IP44
  • 2 years warranty
Contact now Download

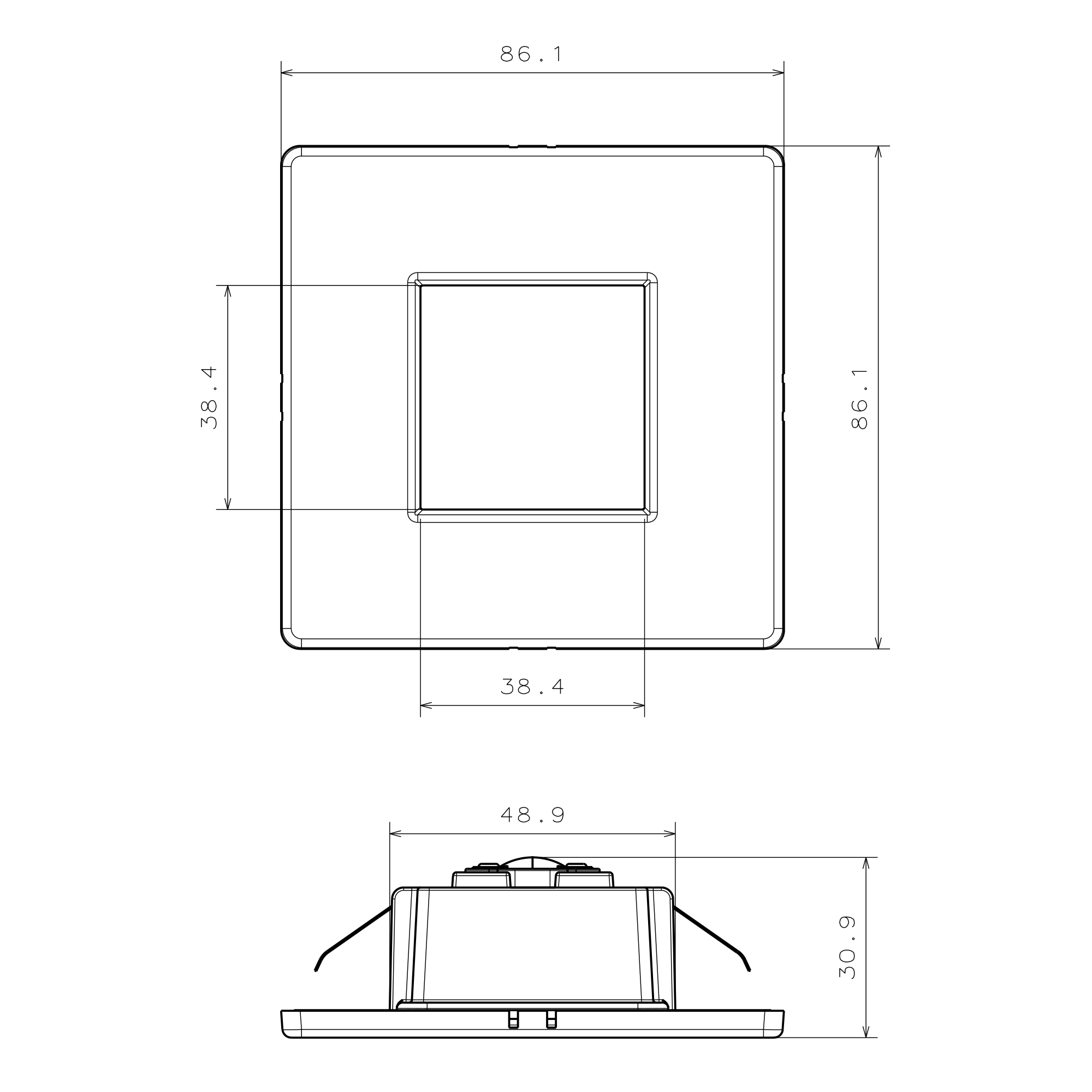

  • image_led_downlight_sl-dl-sv25s_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SV25S-111 0.5W SMD2835 Yes 220-240V~50/60Hz 3000/4000/6500K 225lm >80Ra 110° >0.4
DL-SV25S-116 1.5W SMD2835 Yes 220-240V~50/60Hz 3000/4000/6500K 225lm >80Ra 110° >0.4
DL-SV25S-117 2.5W SMD2835 Yes 220-240V~50/60Hz 3000/4000/6500K 225lm >80Ra 110° >0.4



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SV25S-111 DOB
 Polypropylene White/Black/Nickel L86.1*W86.1*H30.9mm 0.057kg 50mm IP44
DL-SV25S-116 DOB
 Polypropylene White/Black/Nickel L84.3*W84.3*H29.6mm 0.057kg 50mm IP44
DL-SV25S-117 DOB
 Polypropylene White/Black/Nickel L86.1*W86.1*H30.9mm 0.057kg 50mm IP44



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SV25S-111 pcs mm   pcs cm   m³
DL-SV25S-116 pcs mm   pcs cm   m³
DL-SV25S-117 pcs mm   pcs cm   m³
