Home / Products / LED DOWNLIGHT / SO/SP Series / M-CSP25-105 5W

Products

(+86)-0574-55003164
image_led_downlight_dl-m-csp25-105

M-CSP25-105 5W

   FEATURES

  • 50mm diameter
  • Slim with only 25mm height
  • Replacement for lamps with a 50mm diameter such as GU10 or MR16
  • Anti-Glare
  • RCM CE UKCA IP44
  • 2 years warranty
Contact now Download

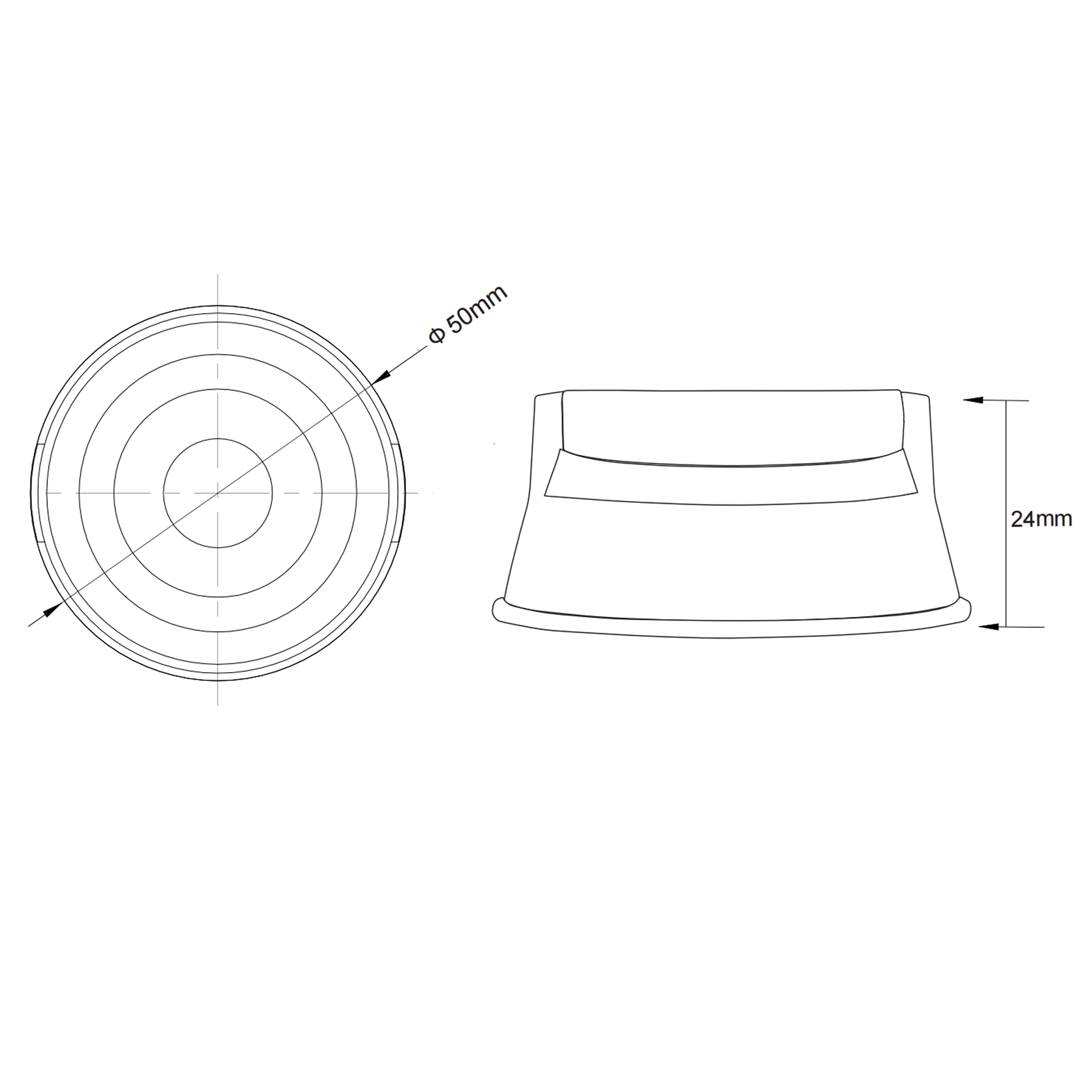

  • image_led_downlight_dl-m-csp25-105_dimension

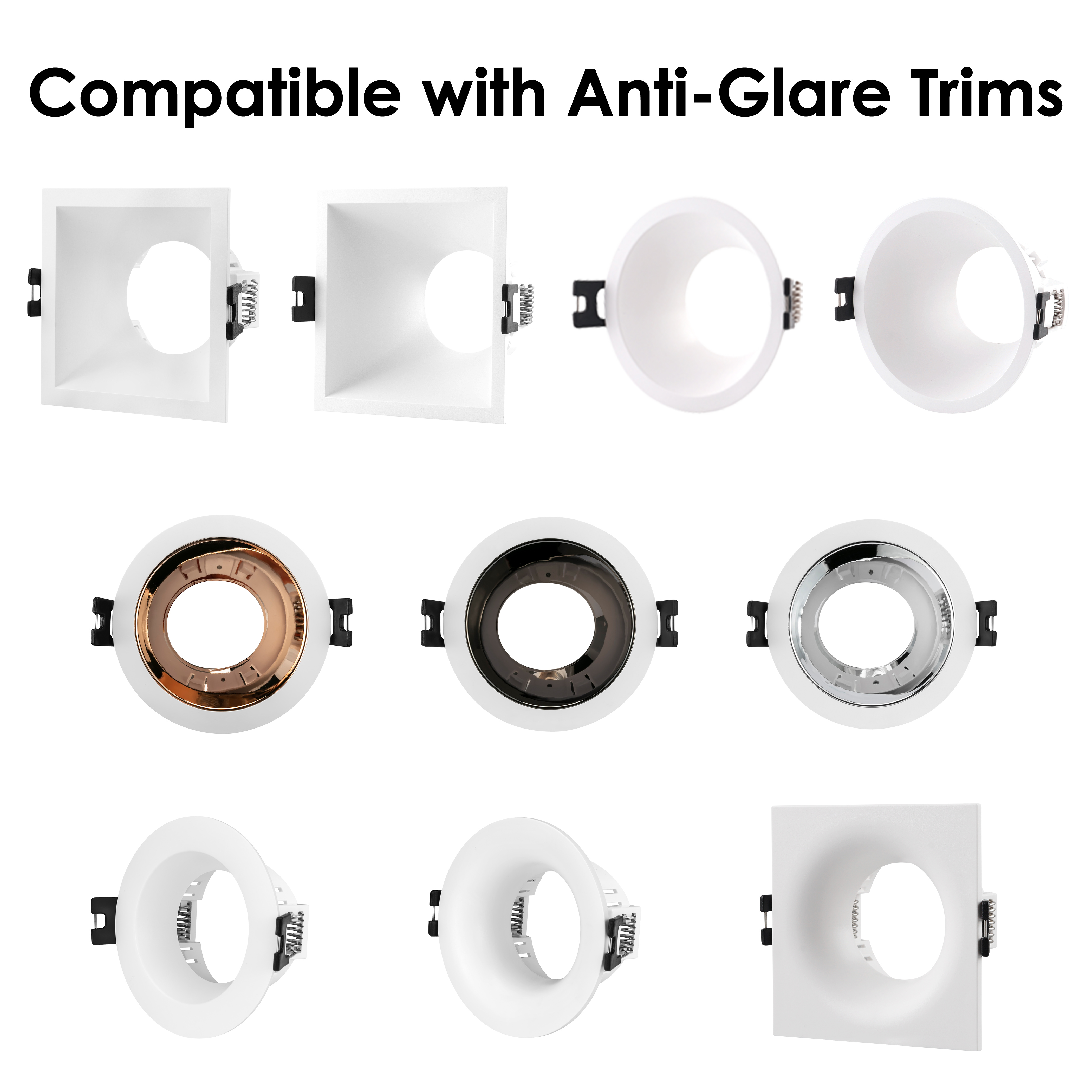

  • image_led_downlight_trim_sp25_whole

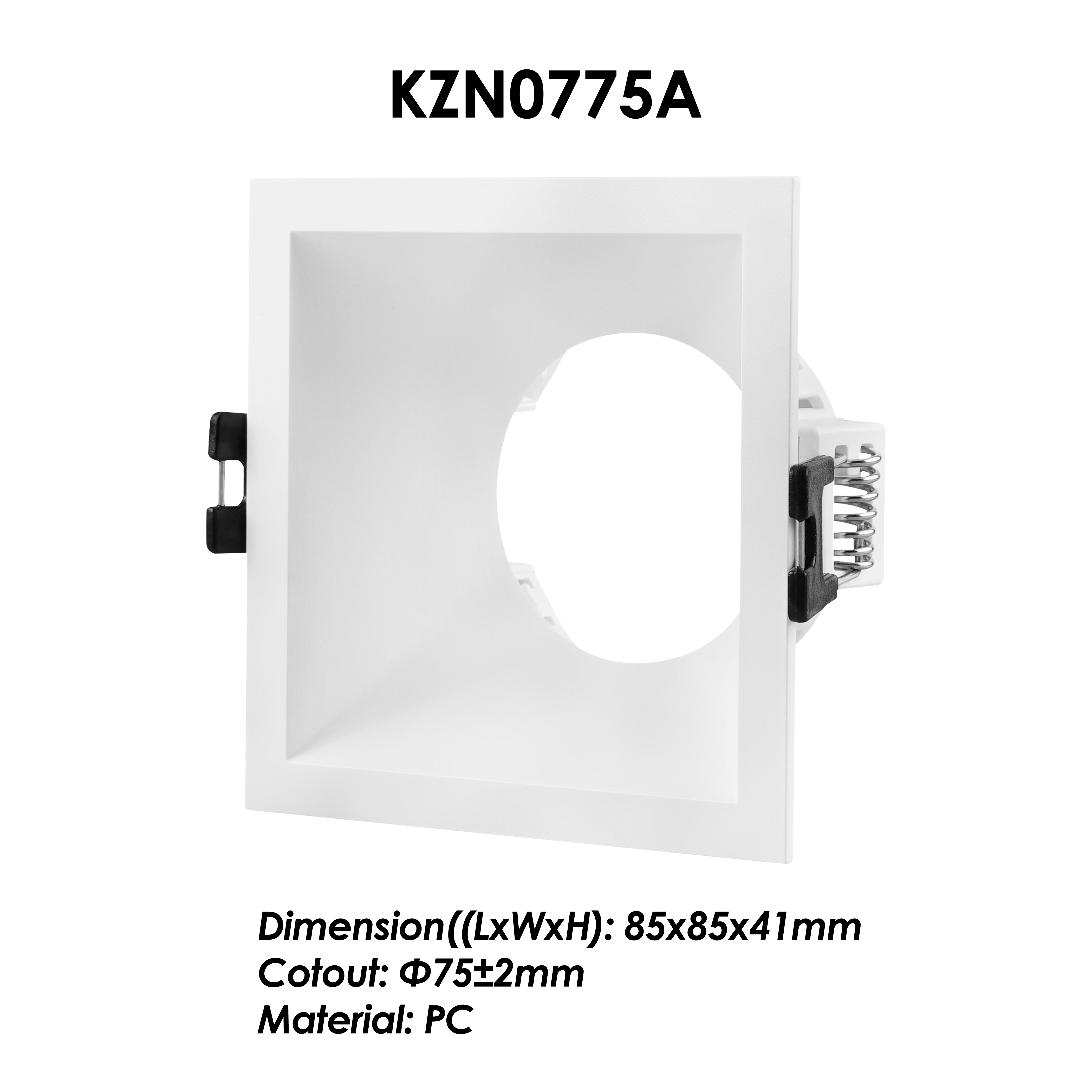

  • image_led_downlight_trim_sp25_kzn0775a

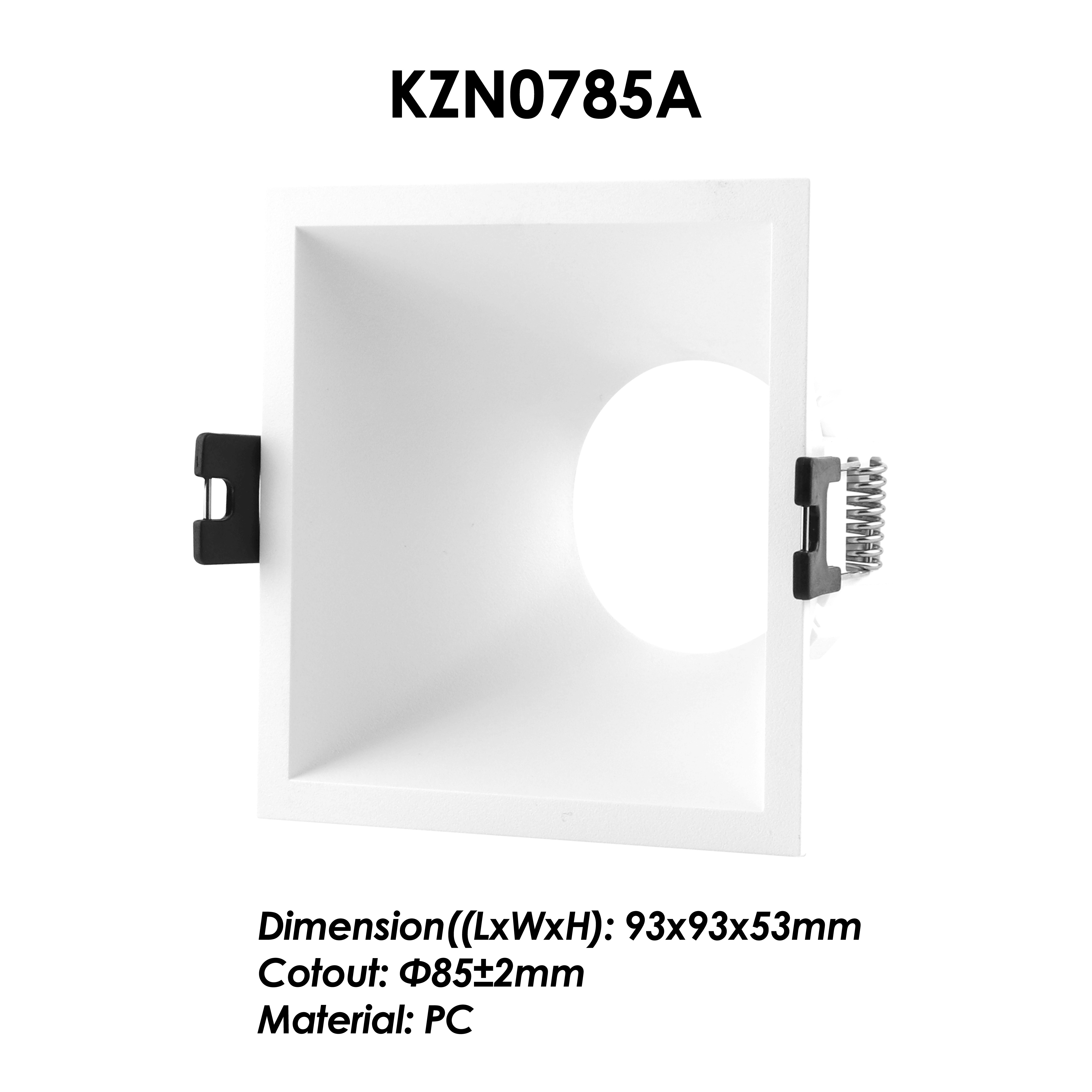

  • image_led_downlight_trim_sp25_kzn0785a

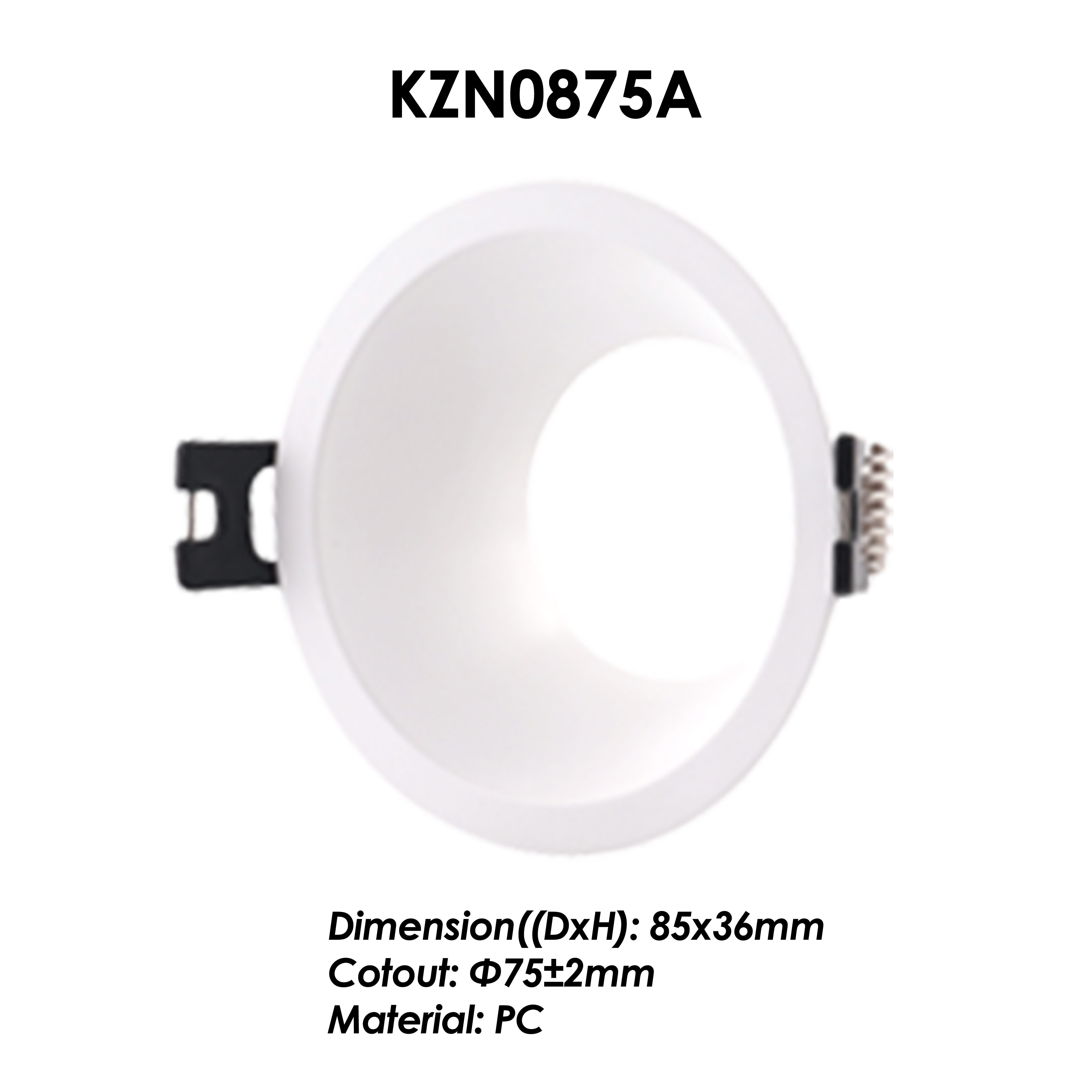

  • image_led_downlight_trim_sp25_kzn0875a
  • image_led_downlight_trim_sp25_kzn0885a

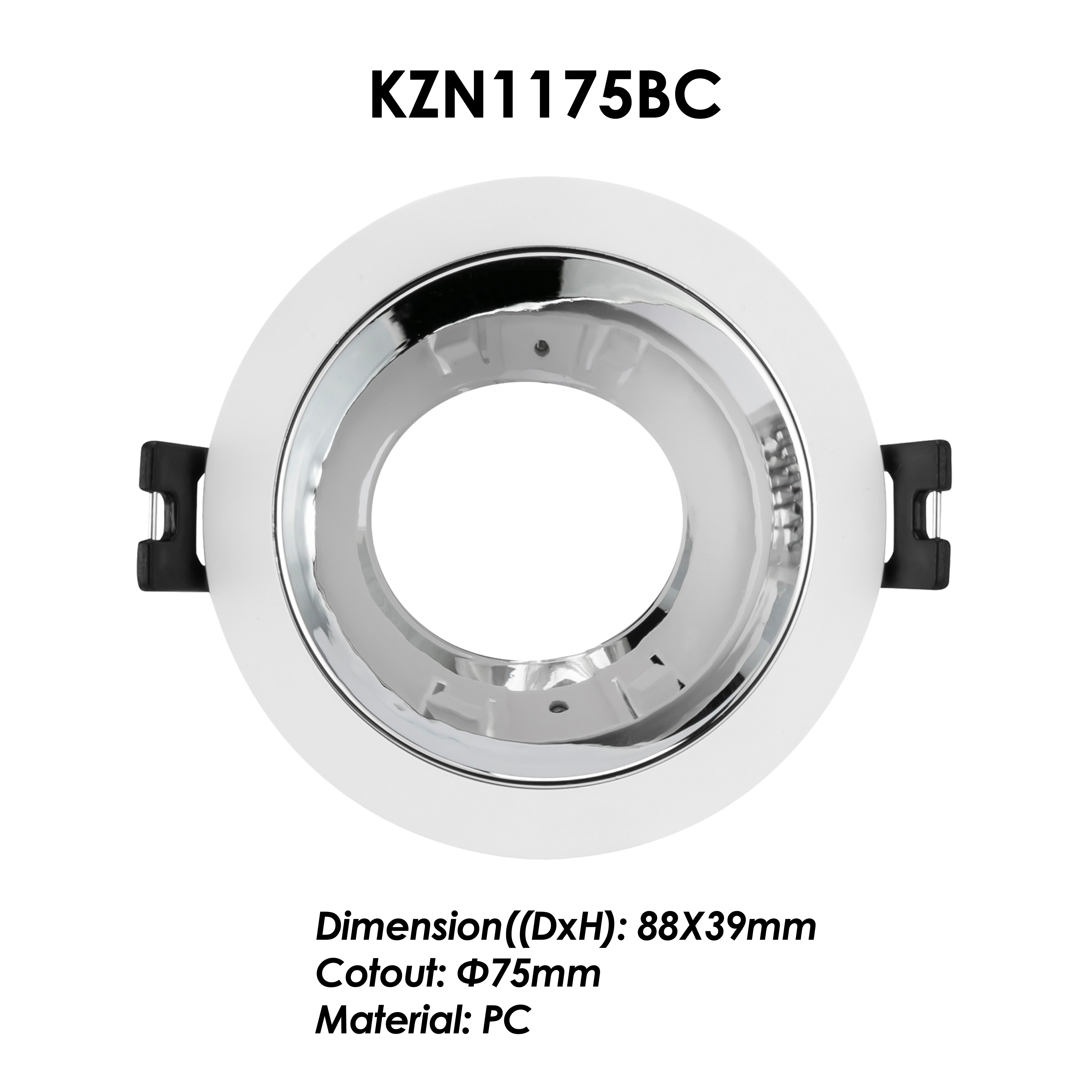

  • image_led_downlight_trim_sp25_kzn1175bc_silver

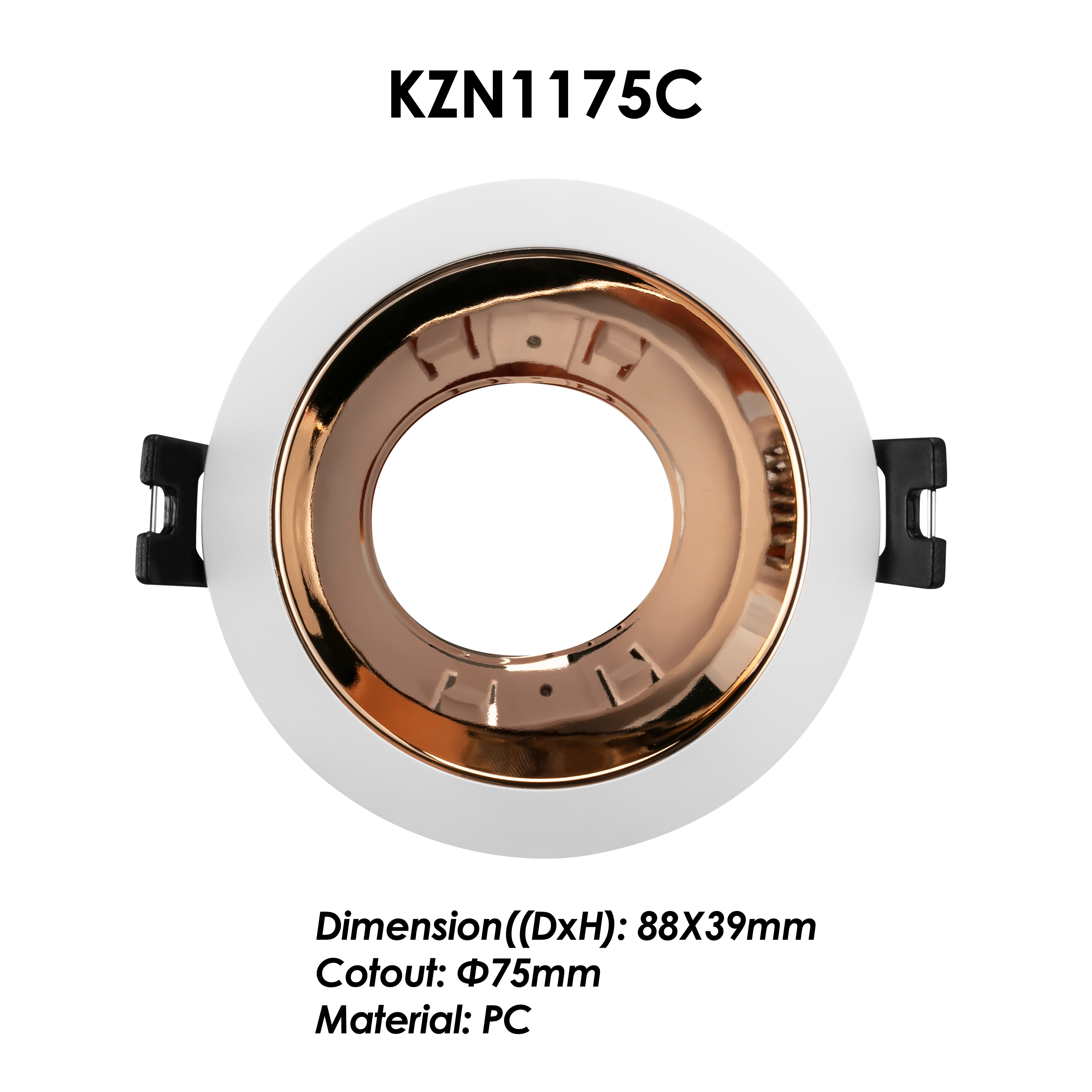

  • image_led_downlight_trim_sp25_kzn1175c_gold

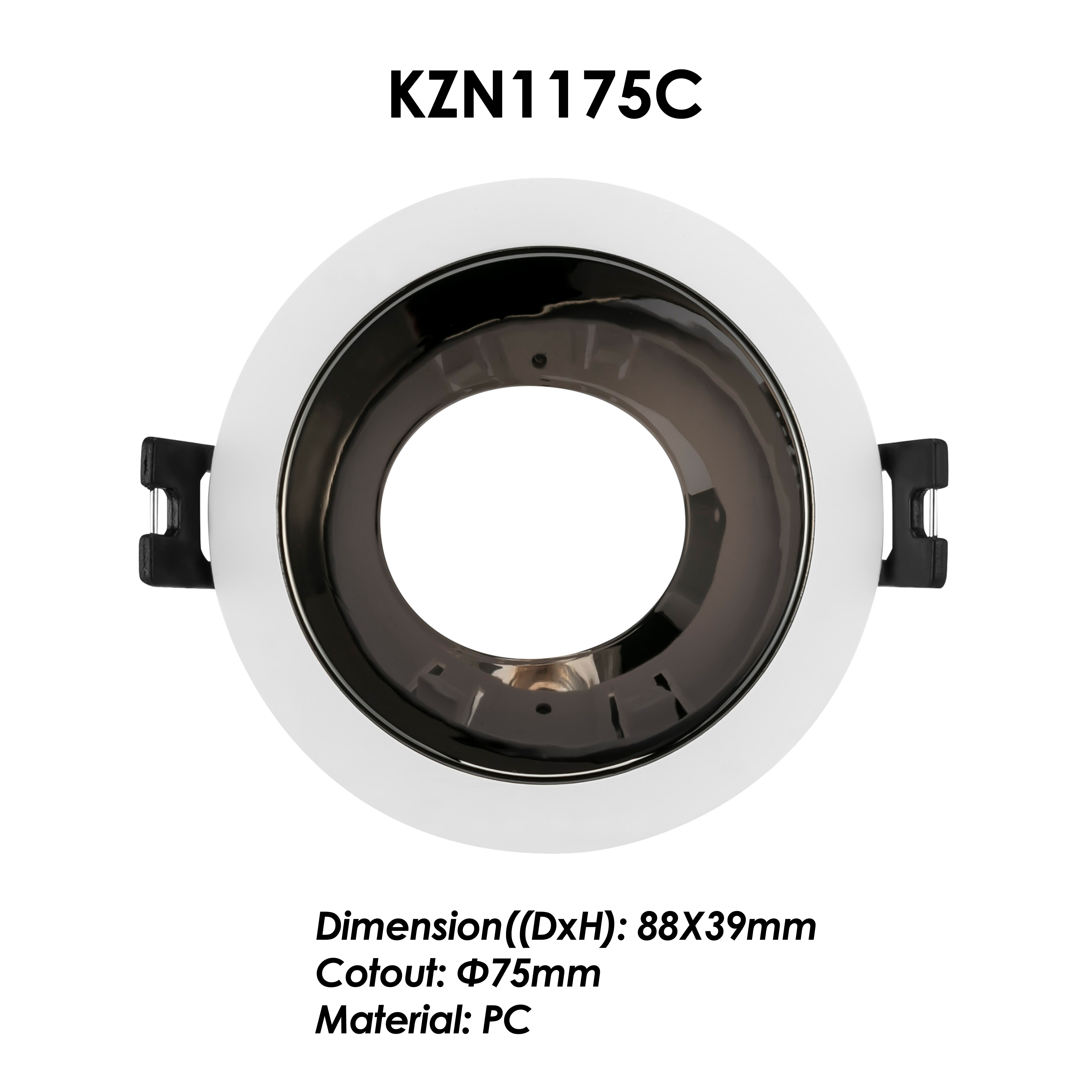

  • image_led_downlight_trim_sp25_kzn1175c_gun

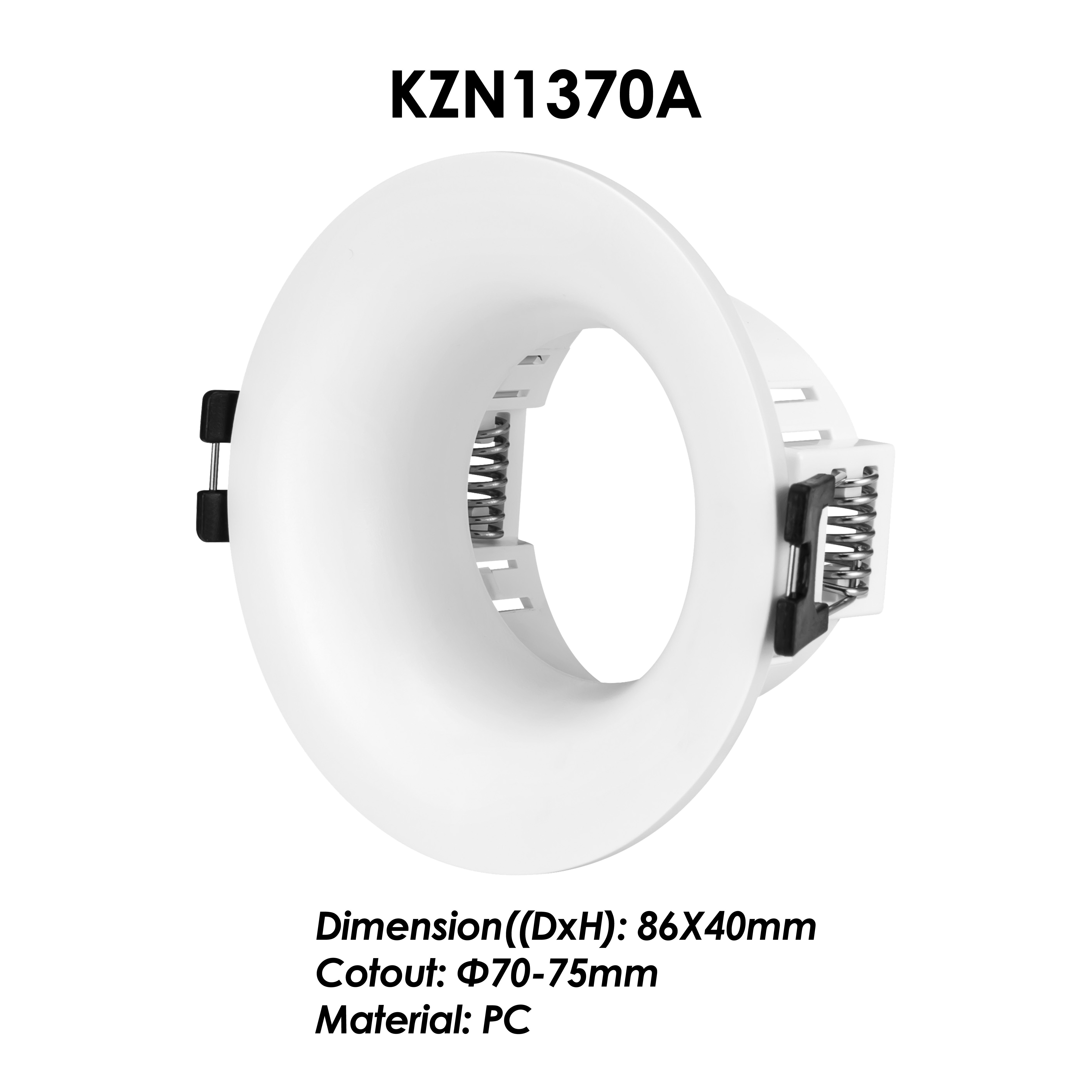

  • image_led_downlight_trim_sp25_kzn1370a

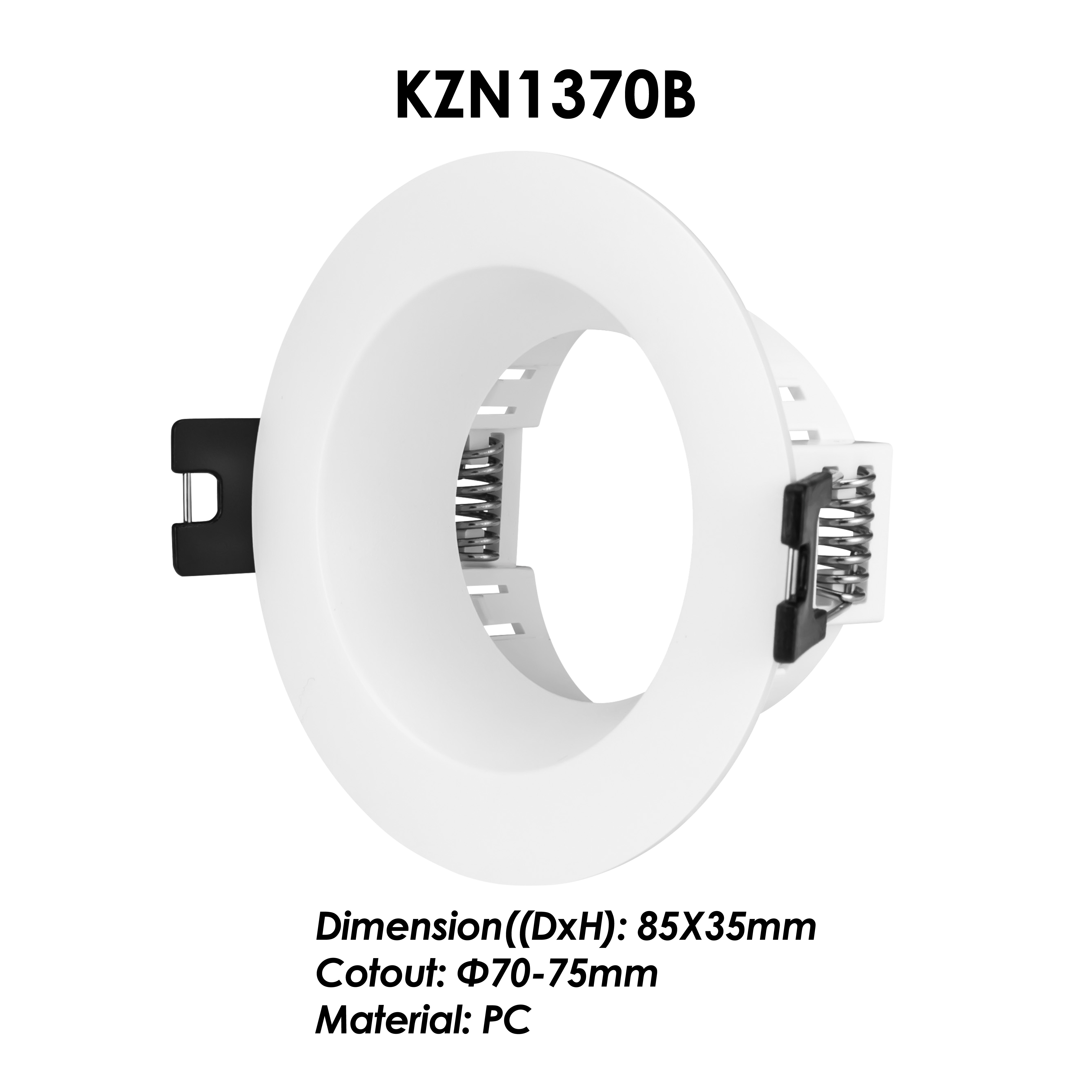

  • image_led_downlight_trim_sp25_kzn1370b

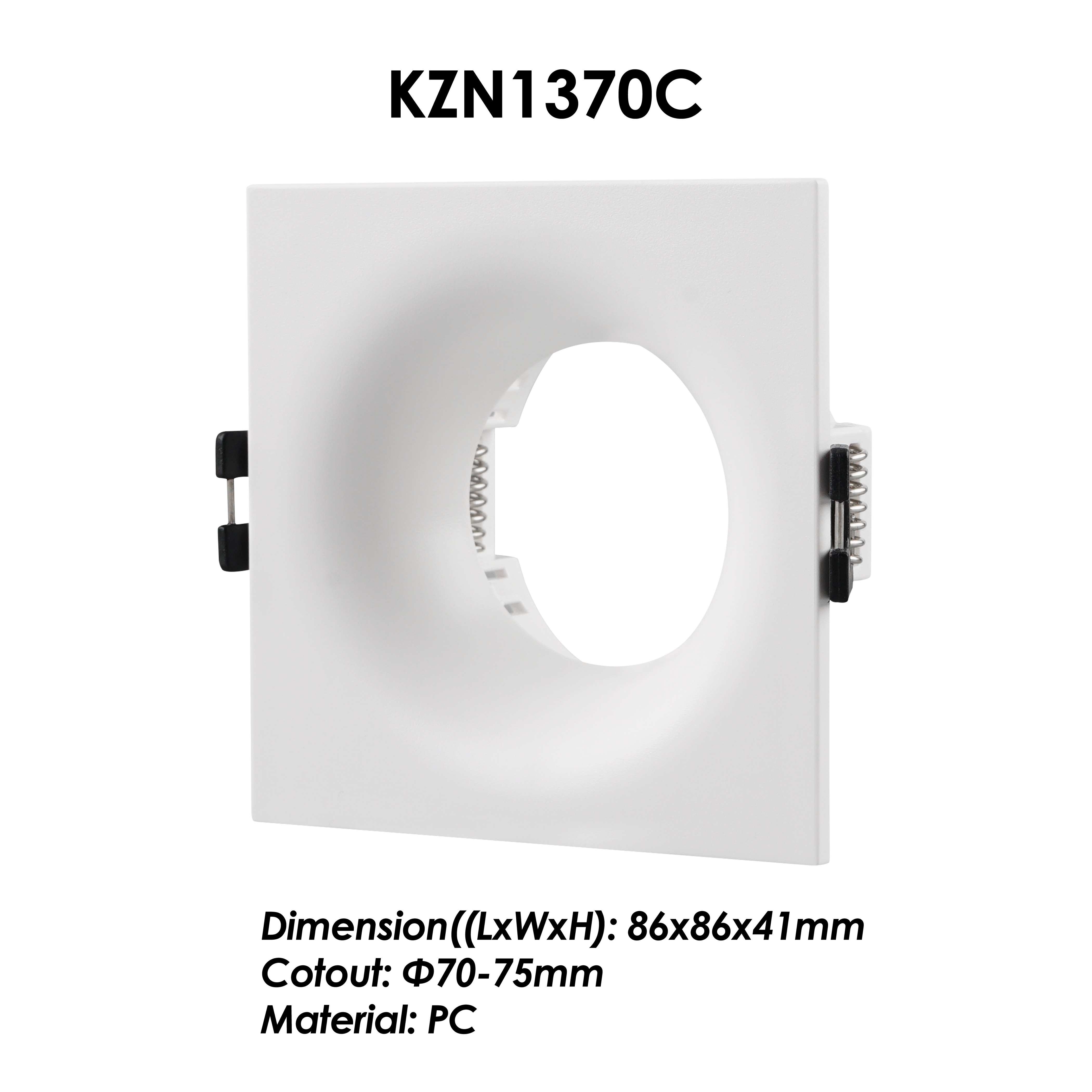

  • image_led_downlight_trim_sp25_kzn1370c

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-M-CSP25-105 5W SMD2835
 No 220-240V~50/60Hz
 3000K
 400lm
 >80Ra
 60°
 >0.7



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Diameter IP Rating
DL-M-CSP25-105
 DOB
 Nylon+AL+PC
 White
 D50*H25mm
 0.040kg
 50mm
 IP44



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-M-CSP25-105 6pcs
 168x135x35mm 240pcs 56.5x35.1x20cm 0.0396㎡
