12W SG360-D5 US Large Size Smart LED Downlight

DL-SG360-213D5 12W US

   FEATURES

  • Smart Tuya App control LED light
  • 6.0inch with 150mm cutout
  • Wifi & BLE (Mesh) mode
  • Compatible with Amazon & Google Assitant
  • Dimmable+RGB+CCT(3000K-6500K)
  • Slim with only 30mm height
  • ETL FCC WET
  • 3 years warranty
Contact now Download

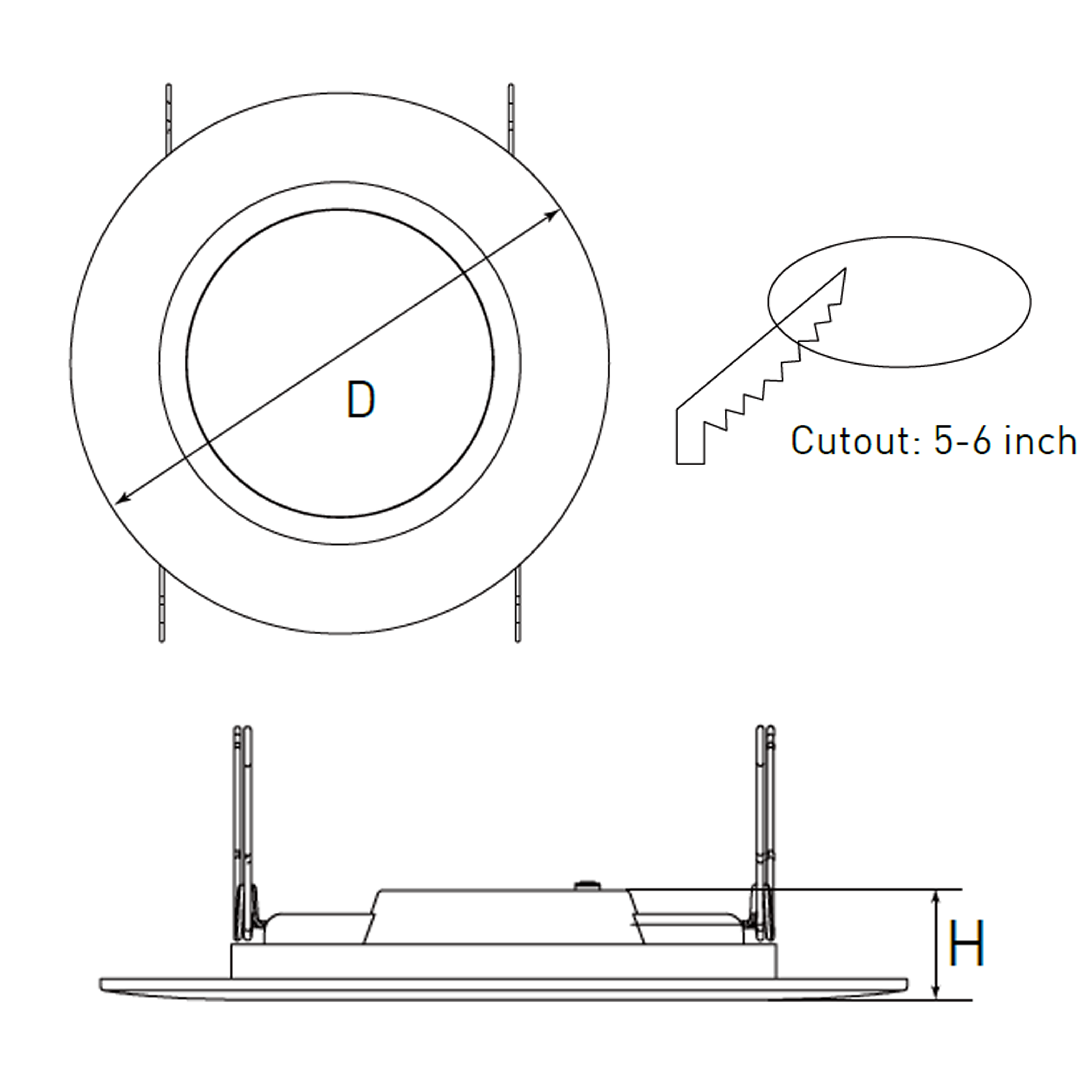

  • 12W SG360-D5 US Large Size Smart LED Downlight_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA
Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SG360-213D3
 12W SMD2835
 Yes
 110-130V~50/60Hz
 2700/3000/4000/5000/6500K
 960lm
 >80Ra
 100°
 >0.7
DL-SG360-213D5
 12W SMD2835
 Yes
 110-130V~60Hz
 3000-6500K & RGB
 960lm
 >80Ra
 100°
 >0.7


CONSTRUCTION
Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SG360-213D3
 Internal
 Nylon+Aluminum
 White/Nickel
 D185xH25mm
 kg 5-6 inch
 WET LOCATION USE
DL-SG360-213D5
 Internal
 Nylon+Aluminum
 White/Nickel
 D185xH25mm
 kg 5-6 inch
 WET LOCATION USE


PACKAGING INFORMATION
Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SG360-213D3
 1pc
 mm kg pcs cm kg m³
DL-SG360-213D5
 1pc
 mm kg pcs cm kg m³
