FEATURES
TECHNICAL DATA
| Code | Power | LED | Dim | Input | CCT | Lumen | CRI | Beam Angle | PF |
| DL-SG260-213D3 |
13W | SMD2835 |
Yes |
110-130V~50/60Hz |
2700/3000/4000/5000/6500K |
1050lm |
>80Ra |
110° |
>0.7 |
| DL-SG260-212D13 |
12W | SMD2835 |
Yes |
110-130V~60Hz |
2700-6000K & RGB |
900-1100lm
|
>80Ra |
110° |
>0.7 |

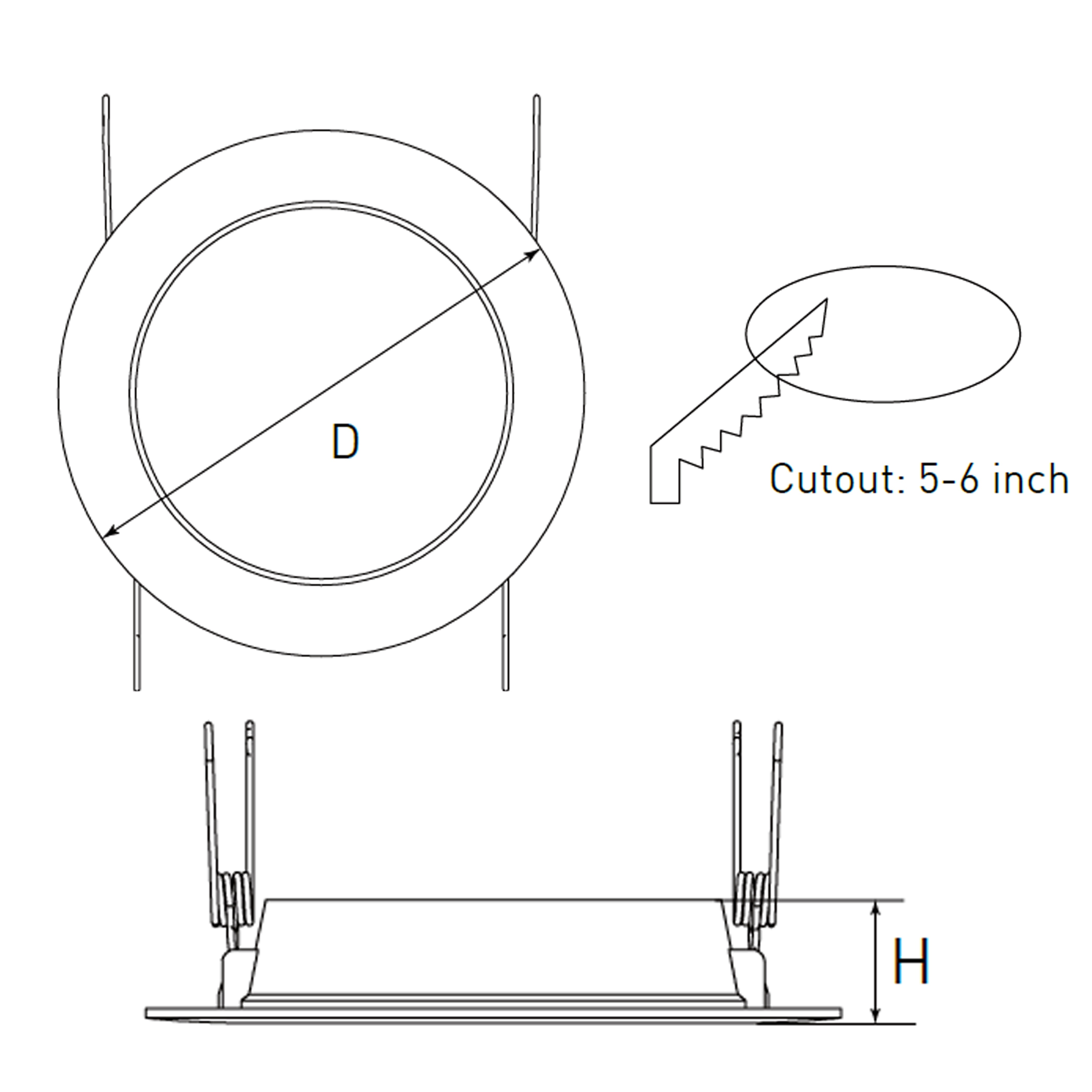

CONSTRUCTION
| Code | Driver |
Body Material | Trim Color | Dimension | Weight | Cutout | IP Rating |
| DL-SG260-213D3 |
Internal |
Nylon+Aluminum |
White/Nickel |
D170xH30mm |
150-160mm |
WET LOCATION USE |
|
| DL-SG260-212D13 | Internal |
Nylon+Aluminum |
White/Nickel |
D185xH30mm |
150-160mm |
WET LOCATION USE |
PACKAGING INFORMATION
| Code | Unit/Inner Box | Inner Box Dimensions (L*W*H) |
Inner Box G.W. | Unit/Masterbox | Masterbox Size (L*W*H) |
Masterbox G.W. | Masterbox Volume |
| DL-SG260-213D3 |
1pcs |
mm | kg | pcs | cm | kg | m³ |
| DL-SG260-212D13 | 6pcs |
220x190x190mm | kg | 54pcs | 59x59x24cm | kg | 0.083196m³ |
If you are interested in our products or have any questions, please consult us.
Contact us
We always follow ISO9001 quality control system strictly. So our products are of high quality, and most of them are SAA RCM CE RoHS certified.
