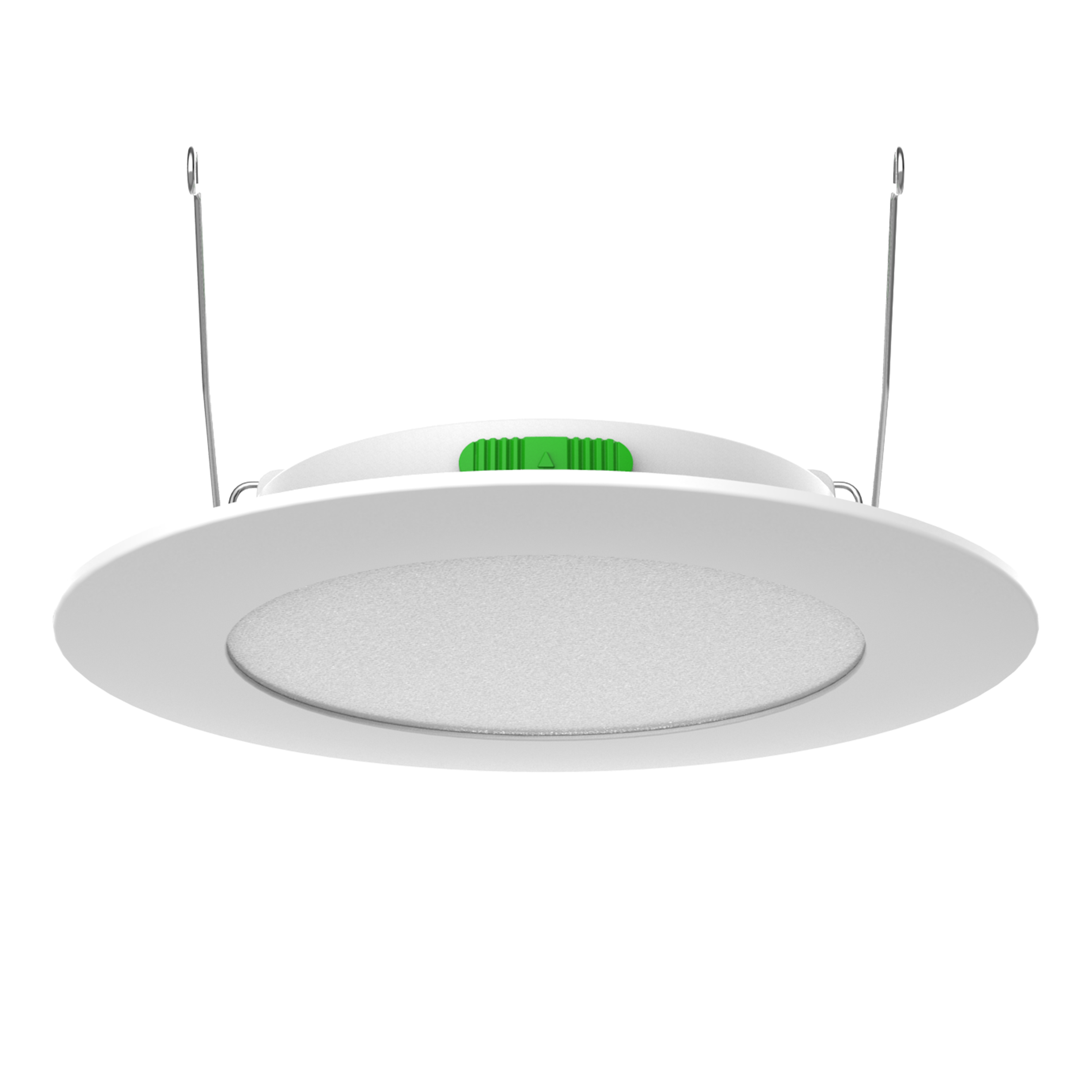

13W SG260-D3 US Large Size 5CCT LED Downlight

DL-SG260-213D3 US 13W

   FEATURES

  • 6.0inch with 150mm cutout
  • Dimmable+5CCT
  • Slim with only 30mm height
  • ETL FCC WET
  • 3 years warranty
Contact now Download

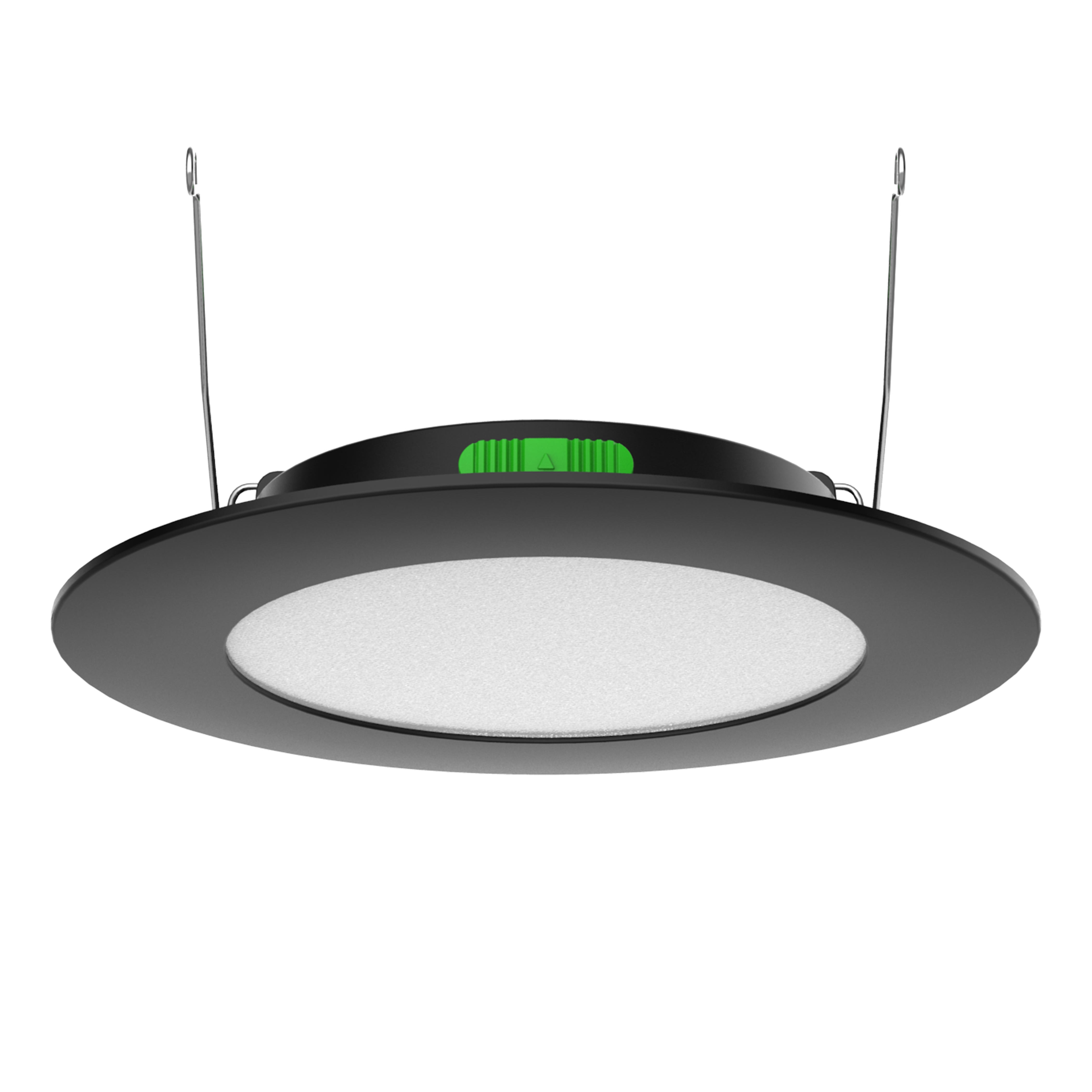

  • 13W SG260-D3 US Large Size 5CCT LED Downlight_black

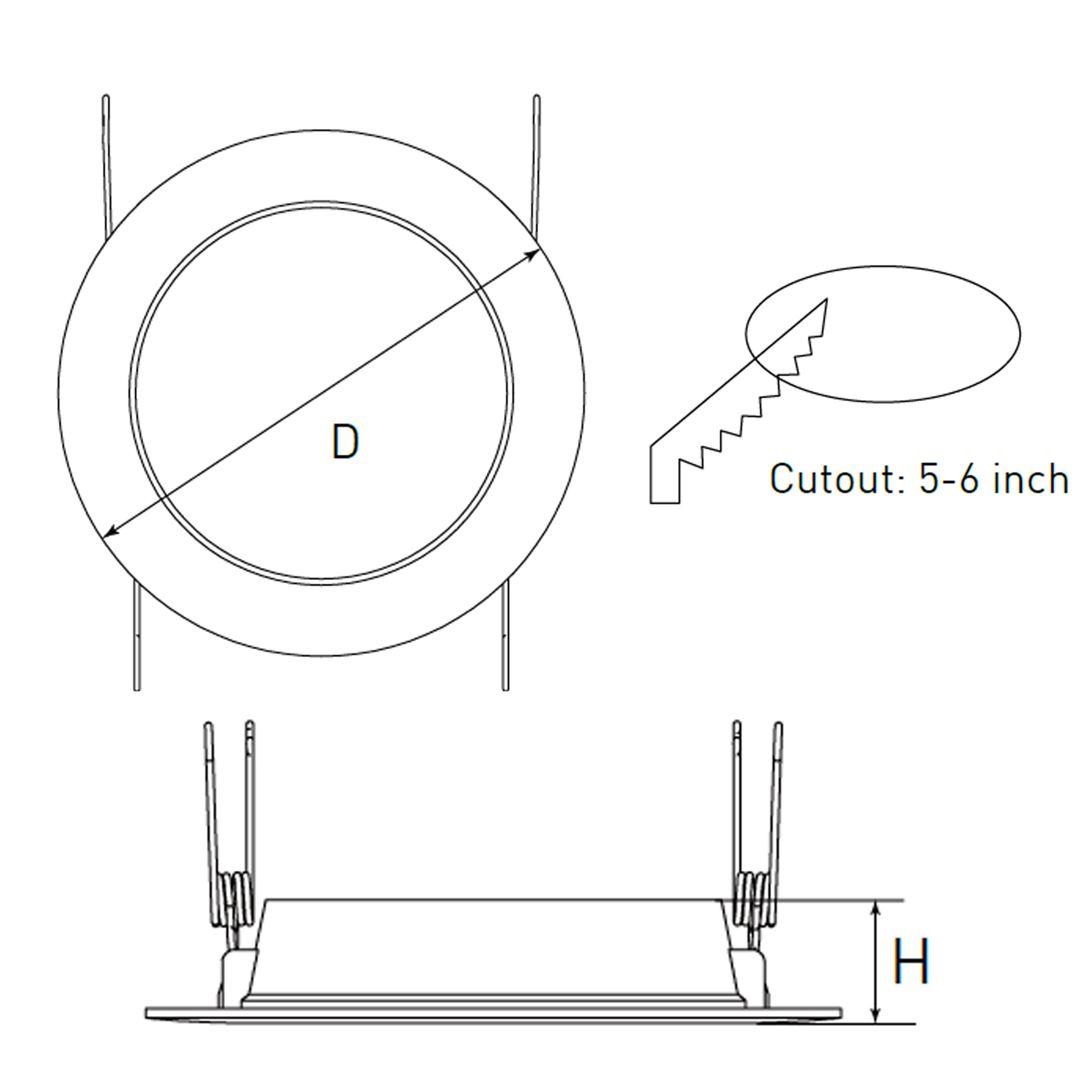

  • 13W SG260-D3 US Large Size 5CCT LED Downlight_dimension-1

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
DL-SG260-213D3
 13W SMD2835
 Yes
 110-130V~50/60Hz
 2700/3000/4000/5000/6500K
 1050lm
 >80Ra
 110°
 >0.7
DL-SG260-213D5
 13W SMD2835
 Yes
 110-130V~60Hz
 3000-6500K & RGB
 1050lm
 >80Ra
 110°
 >0.7



CONSTRUCTION

Code Driver
 Body Material Trim Color Dimension Weight Cutout IP Rating
DL-SG260-213D3
 Internal
 Nylon+Aluminum
 White/Nickel
 D170xH30mm
 kg 5-6 inch
 WET LOCATION USE
DL-SG260-213D5
 Internal
 Nylon+Aluminum
 White/Nickel
 D170xH30mm
 kg 5-6 inch
 WET LOCATION USE



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
DL-SG260-213D3
 1pc
 mm kg pcs cm kg m³
DL-SG260-213D5
 1pc
 mm kg pcs cm kg m³
