OT-01A-4P3 LED Solar Spike Light

OT-01A-4P3 4W

   FEATURES

  • 30° LED solar spike light with PIR Sensor
  • Sensitive PIR motion sensor
  • 3CCT+ Dimmable
  • Groud/Wall mounted
  • Adjustable heads
  • Solar energy/USB chargeable
  • FCC EMC IP65
Contact now Download
  • OT-01A-4P3 LED Solar Spike Light_backview

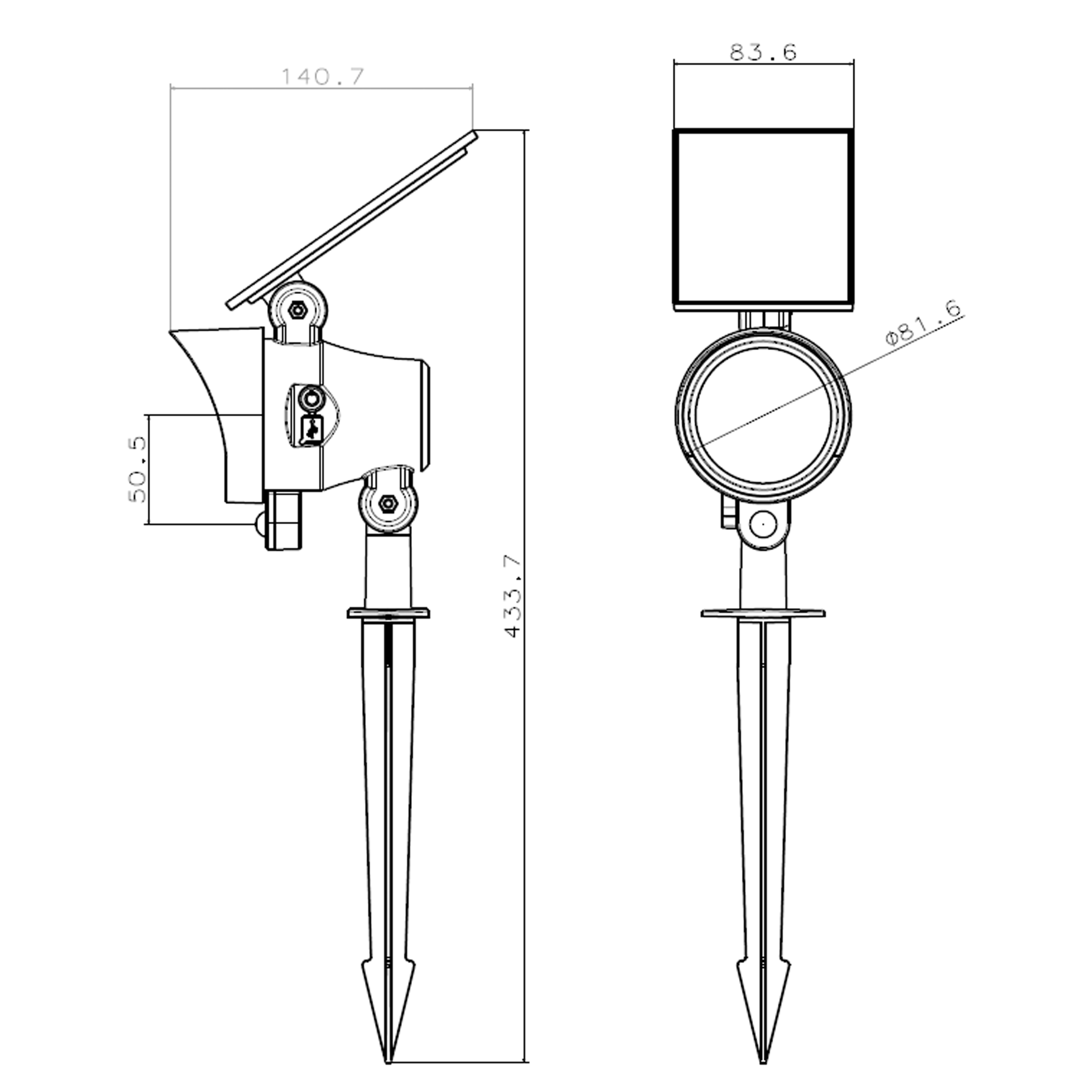

  • OT-01A-4P3 LED Solar Spike Light_dimension.jpg

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Solar Panel CCT Lumen CRI Beam Angle Detection Angle Detection Duration
 Detection Distance
 Charging Time
 Endurance Time
OT-01A-1D3 1.2W SMD2835 Yes 5.5VDC 300mA 3000/4000/6500K 60-80lm >80Ra 30° / / / 6h by solar energy
3.5h by USB(Type-C)		 8-10h
OT-01A-1R 1.2W SMD2835 Yes 5.5VDC 300mA RGB 60-80lm >80Ra 30° / / / 6h by solar energy
3.5h by USB(Type-C)		 8-10h
OT-01A-4P3 4W SMD2835 Yes 5.5VDC 300mA 3000/4000/6500K 180lm >80Ra 30° 120° 30s 5m max 6h by solar energy
3.5h by USB(Type-C)		 2.5h



CONSTRUCTION

Code Body Material Trim Color Weight IP Rating Mount
OT-01A-1D3 ABS+PC Black 0.2591kg IP65 Groud/Wall
OT-01A-1R ABS+PC Black 0.2591kg IP65 Groud/Wall
OT-01A-4P3 ABS+PC Black 0.2641kg IP65 Groud/Wall



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
OT-01A-1D3 4pcs 255*140*90mm 0.58kg 36pcs 60.5*47*28cm 12.36kg 0.080m³
OT-01A-1R 4pcs 255*140*90mm 0.58kg 36pcs 60.5*47*28cm 12.36kg 0.080m³
OT-01A-4P3 4pcs 255*140*90mm 0.60kg 36pcs 60.5*47*28cm 12.65kg 0.080m³
