CLE Series Ultra Slim 3CCT Dimmable LED Ceiling Light

CL-E400-128D3 28W

   FEATURES

  • 3CCT
  • Triac dimmable
  • 30mm slim design
  • Internal non-isolated CC driver
  • Dust and insect resistant, water proof IP54
  • 3 years warranty
Contact now Download

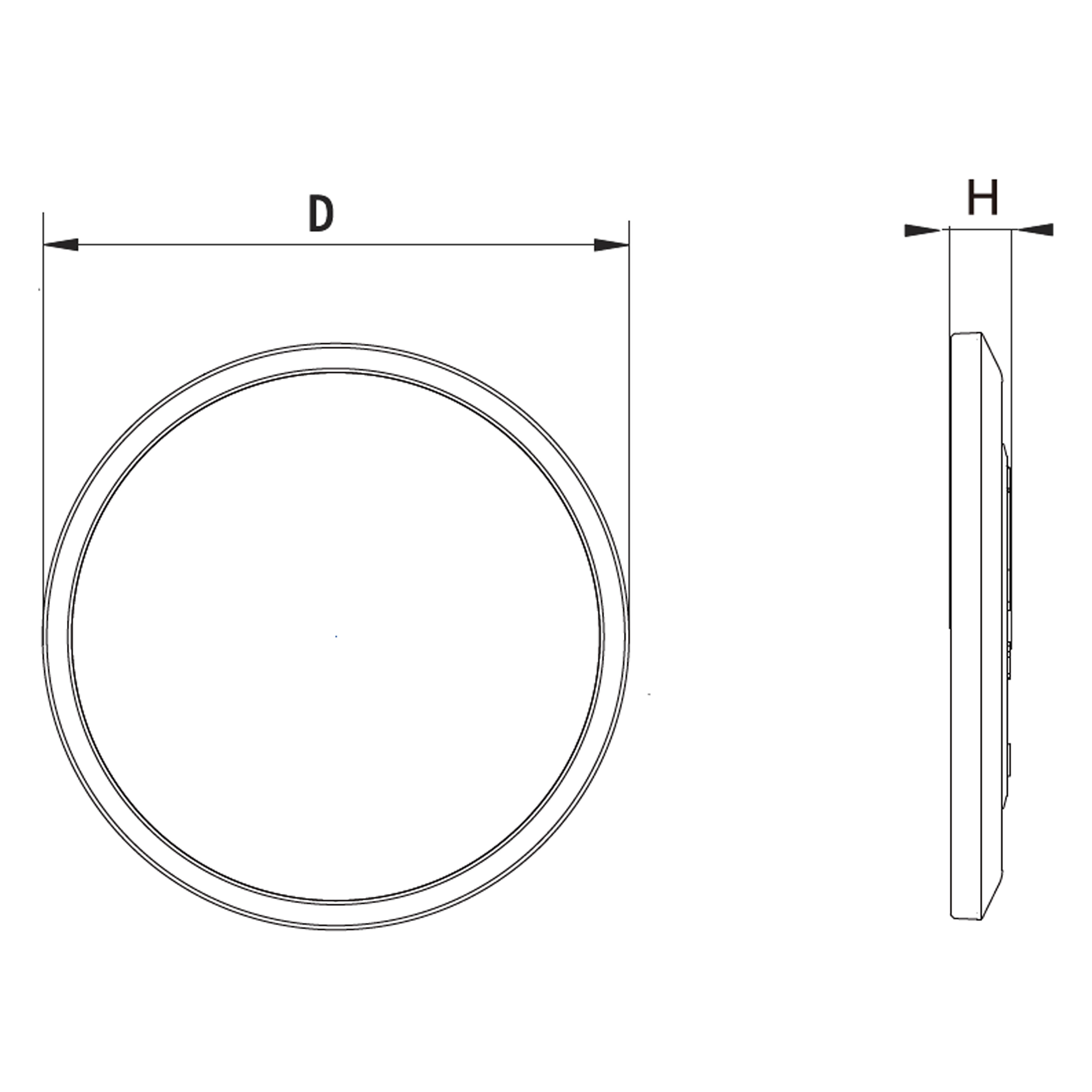

  • CLE Series Ultra Slim 3CCT Dimmable LED Ceiling Light_dimension

PRODUCT DESCRIPTION

TECHNICAL DATA

Code Power LED Dim Input CCT Lumen CRI Beam Angle PF
CL-E250-112D3 13W SMD Yes(Triac) 220-240V~50/60Hz 3000/4000/5700K 1105lm >80Ra 110° >0.9
CL-E300-122D3 22W SMD
 Yes(Triac)
 220-240V~50/60Hz
 3000/4000/5700K
 2040lm >80Ra
 110°
 >0.9
CL-E400-128D3 28W SMD
 Yes(Triac)
 220-240V~50/60Hz
 3000/4000/5700K
 2550lm >80Ra
 110°
 >0.9



CONSTRUCTION

Code Body Material Trim Color Dimension
 Weight IP Rating
CL-E250-112D3 PP/PS White D244*H30mm 0.442kg IP54
CL-E300-122D3 PP/PS White
 D290*H30mm 0.588kg IP54
CL-E400-128D3 PP/PS White
 D420*H30mm 1.132kg IP54



PACKAGING INFORMATION

Code Unit/Inner Box Inner Box Dimensions
(L*W*H)		 Inner Box G.W.  Unit/Masterbox Masterbox Size
(L*W*H)
 Masterbox G.W. Masterbox Volume
CL-E250-112D3 1pc 249*249*35mm 0.50kg 20pcs 75.5*26.3*26.7cm 12.00kg 0.053m³
CL-E300-122D3 1pc
 295*295*35mm 0.66kg 20pcs 75.7*30.9*31.3cm 15,20kg 0.073m³
CL-E400-128D3 1pc
 425*425*35mm 1.245kg 10pcs 43.9*38.5*44.3cm 15.33g 0.075m³
